5. Sci Transmit Circuit Shorted To Ground

With the ignition off.

Measure the resistance between ground and the SCI Transmit circuit.

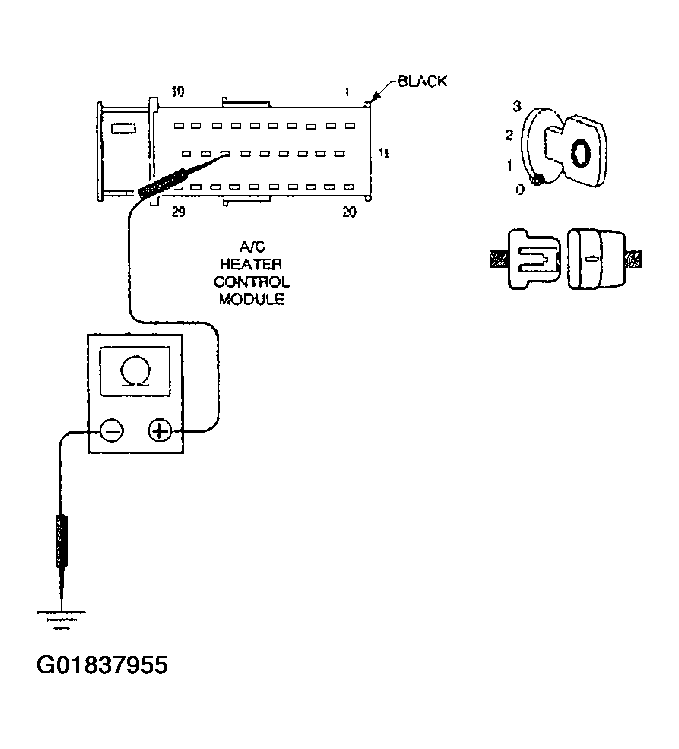

Fig 1: Measuring Resistance Between Ground & SCI Transmit Circuit
G01837955Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 100 kohms?

  1. Yes  >> Repair the SCI Transmit circuit for a short to ground.

    See BODY VERIFICATION TEST  .

  2. No  >> Go to 6
