4. Sci Transmit Circuit Open

With the ignition off.

Measure the resistance of the SCI Transmit circuit from the A/C Heater Control Module harness connector to the DLC.

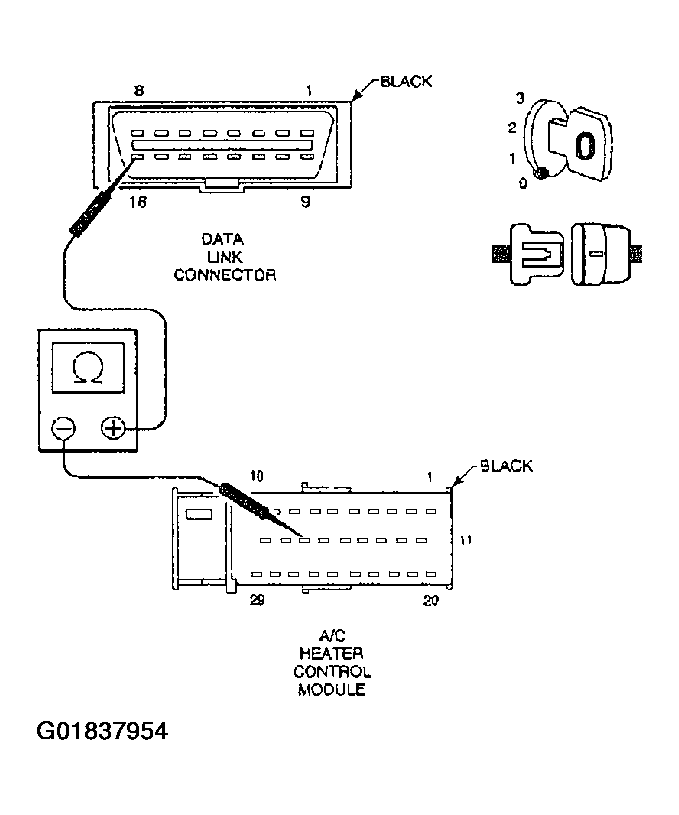

Fig 1: Measuring Resistance Of SCI Transmit Circuit
G01837954Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Go to 5
  2. No  >> Repair the SCI Transmit circuit for an open.

    See BODY VERIFICATION TEST  .
