Sentry Key Antenna Ring

  1. Install the sentry key antenna ring (1) to the ignition switch key cylinder (2).

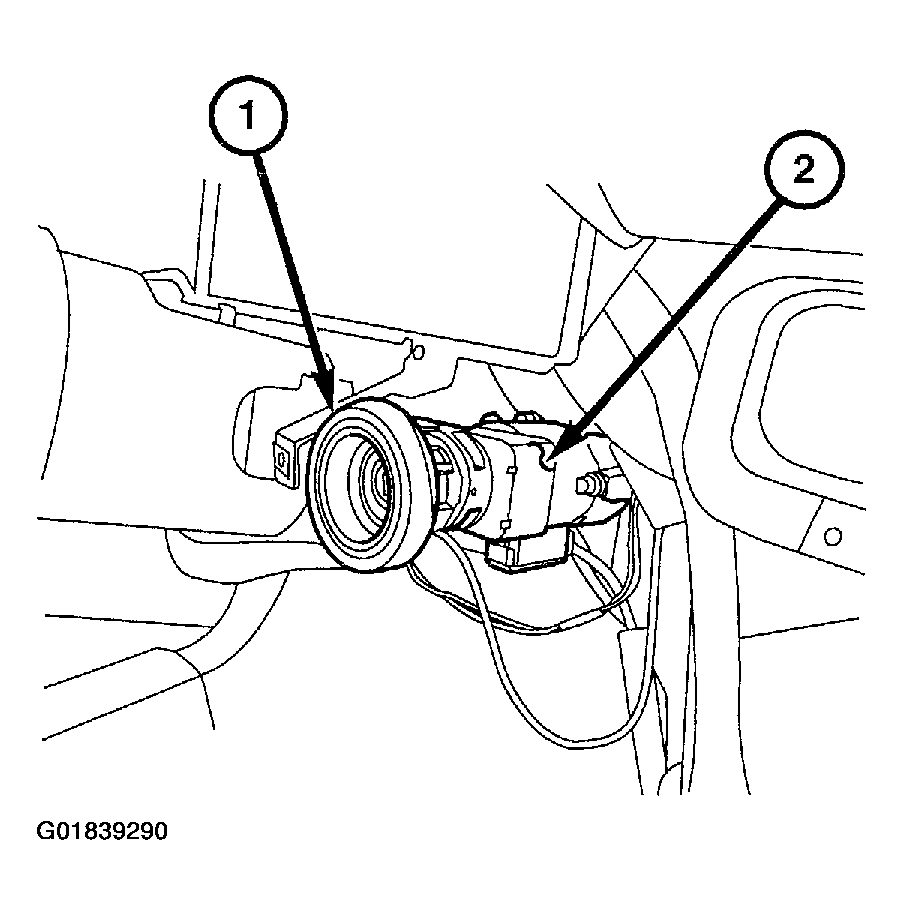

    Fig 1: Installing Sentry Key Antenna Ring To Ignition Switch Key Cylinder
    G01839290Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the sentry key antenna ring electrical connector (1) to the sentry key remote entry module (2).

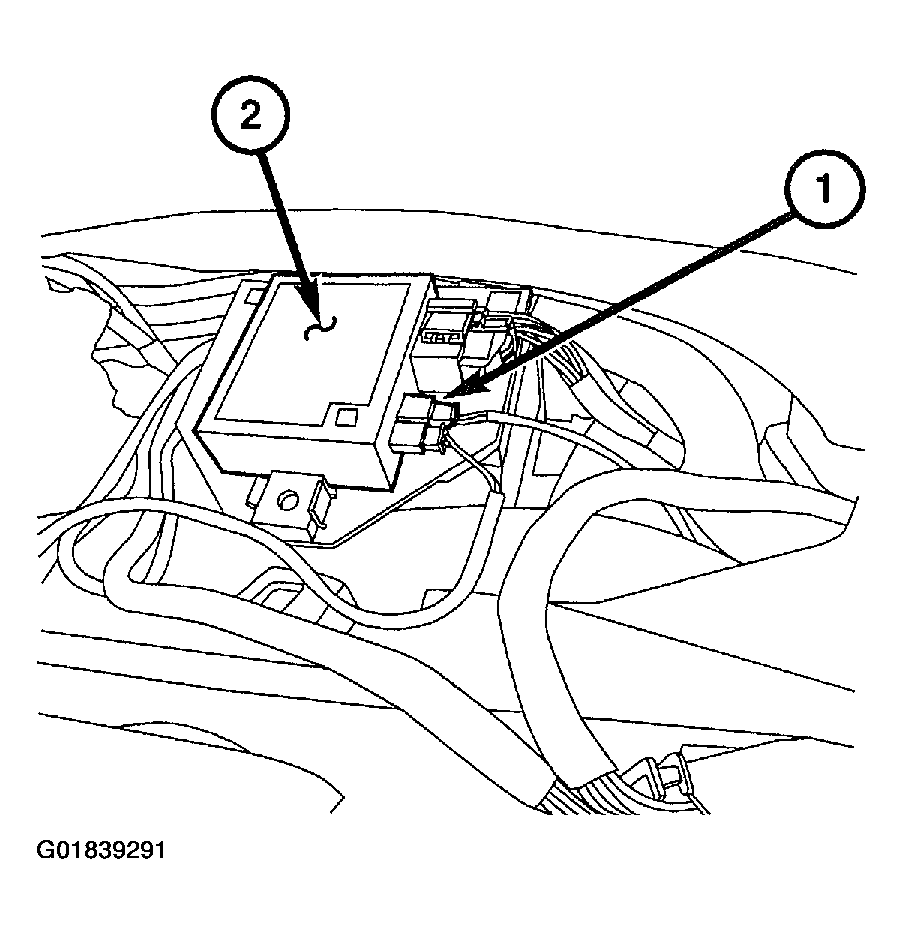

    Fig 2: Installing Sentry Key Antenna Ring Electrical Connector To Sentry Key Remote Entry Module
    G01839291Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the instrument cluster. See INSTRUMENT CLUSTER .
