Water Pump: Removal

  1. Disconnect the negative battery cable.
  2. Drain the cooling system. See DRAINING COOLING SYSTEM .
  3. Remove the air cleaner.
  4. Remove the radiator fan. See RADIATOR FAN .
  5. Remove the accessory drive belt. See DRIVE BELT .
  6. Remove the belt tensioner. See BELT TENSIONER .
  7. Disconnect the lower radiator (2) hose and the coolant bypass hose (1).
    Fig 1: Disconnecting Lower Radiator Hose & Coolant Bypass Hose
    G01837797Courtesy of DAIMLERCHRYSLER CORP.

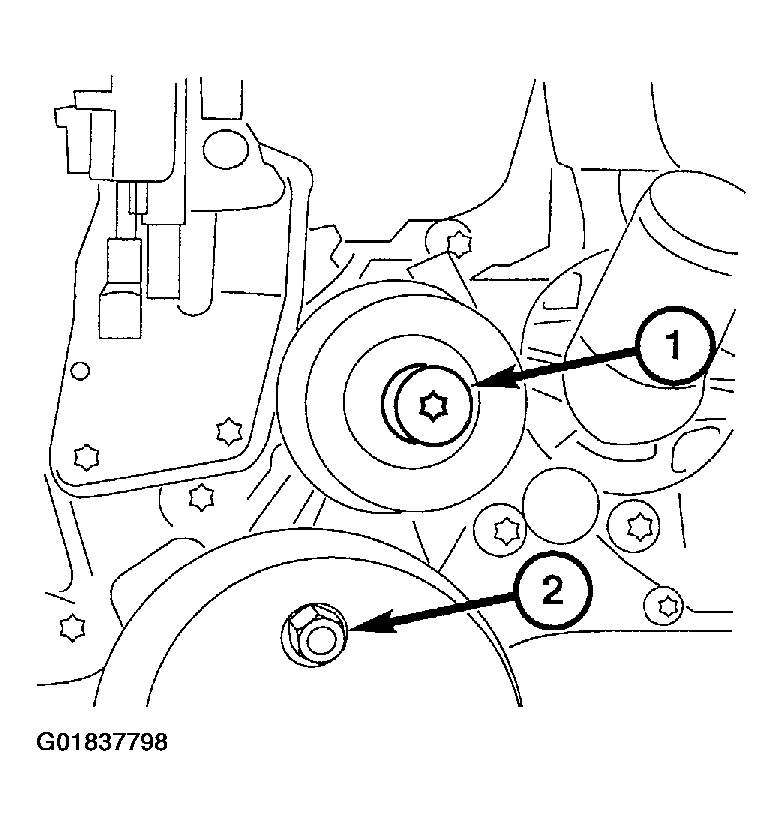

  8. Remove the water pump pulley (2) and the idler pulley (1).
    Fig 2: Removing Water Pump Pulley & Idler Pulley
    G01837798Courtesy of DAIMLERCHRYSLER CORP.
  9. Remove the water pump retaining bolts and water pump.

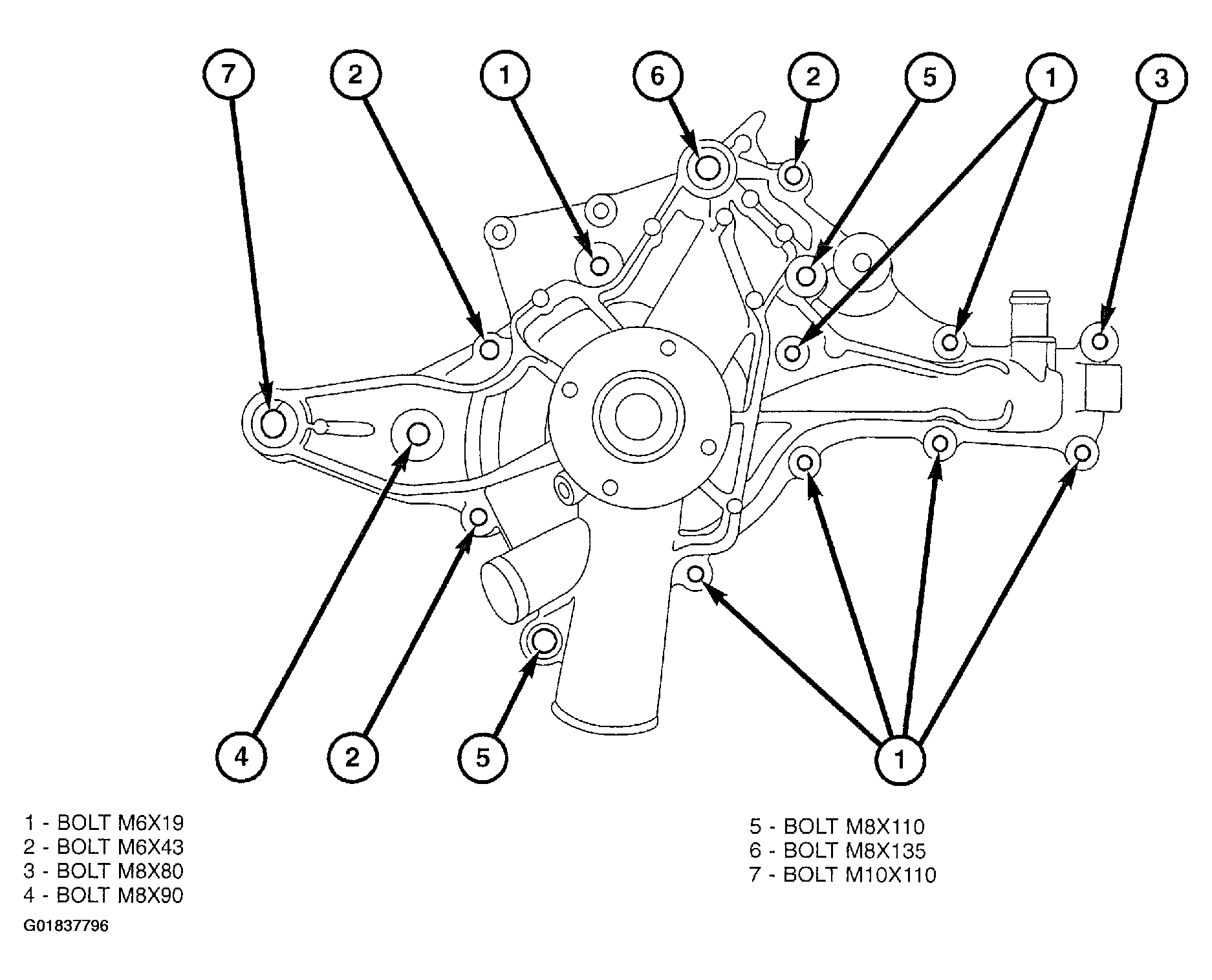

    Fig 3: Identifying Water Pump Bolts
    G01837796Courtesy of DAIMLERCHRYSLER CORP.
