Engine Cooling System & Automatic Transmission Cooling System: Engine: Radiator: Removal

  1. Disconnect the negative battery cable.
  2. Remove the radiator fan. See RADIATOR FAN .
  3. Drain the cooling system. See DRAINING COOLING SYSTEM .
  4. Remove the air cleaner inlet tubes.
  5. Disconnect the upper radiator hose (4).
  6. Disconnect the lower radiator hose (7) and coolant recovery reservoir hose (5).

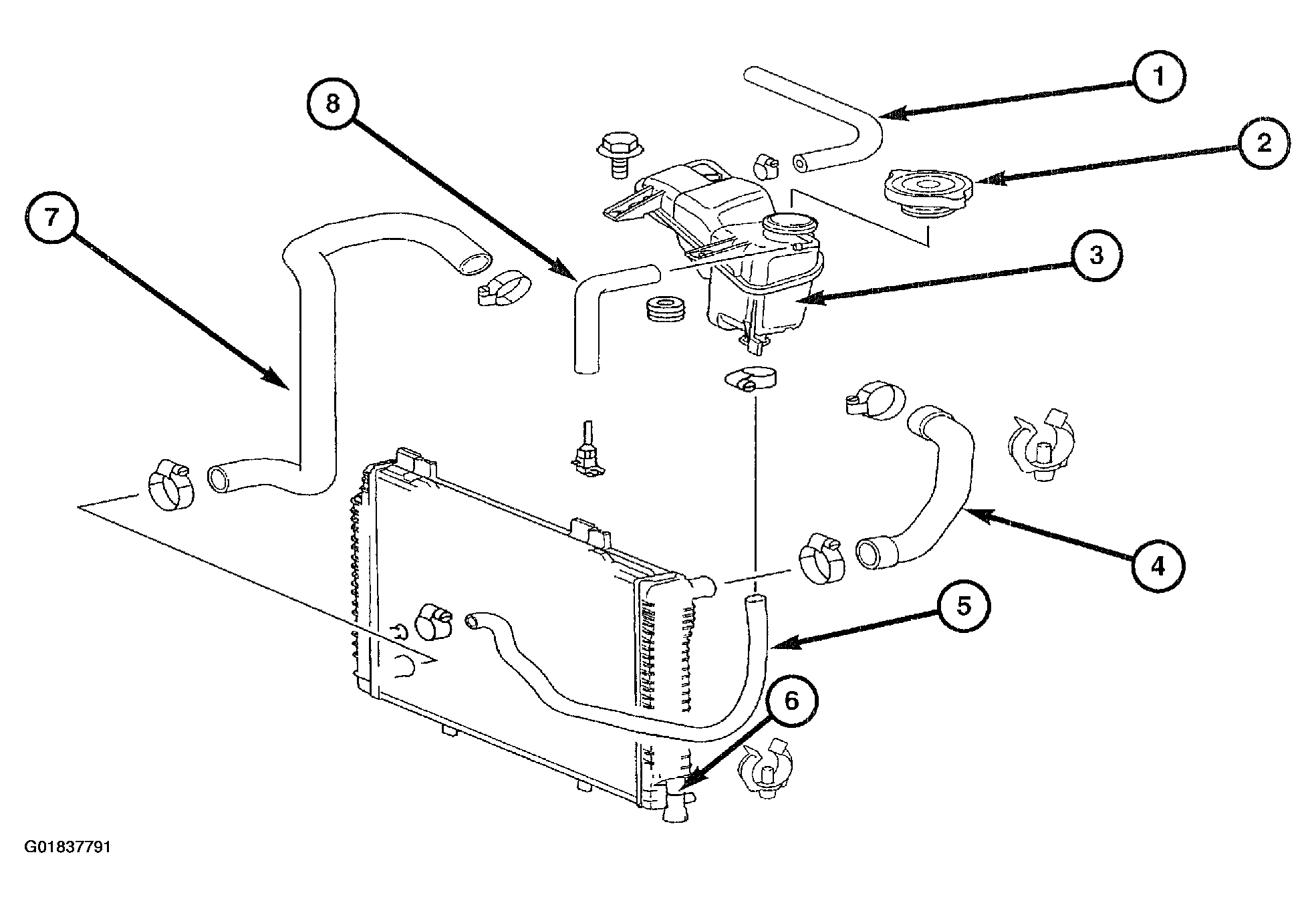

    Fig 1: Removing Radiator Components
    G01837791Courtesy of DAIMLERCHRYSLER CORP.
  7. Disconnect the transmission cooler lines and fit together with coupler (automatic transmission only). See TRANSMISSION COOLER LINES .
  8. Remove the radiator hold down clamps (1).

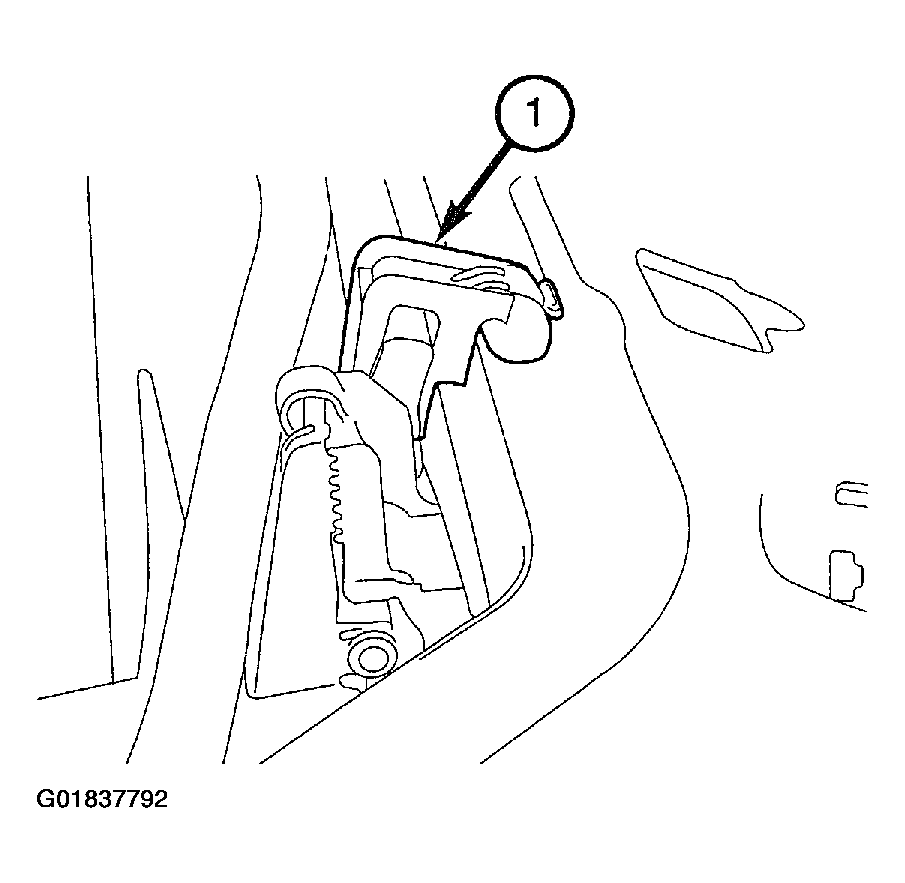

    Fig 2: Removing Radiator Hold Down Clamps
    G01837792Courtesy of DAIMLERCHRYSLER CORP.
  9. Tilt the radiator forward and remove the A/C condenser to the radiator retaining bolts (1).

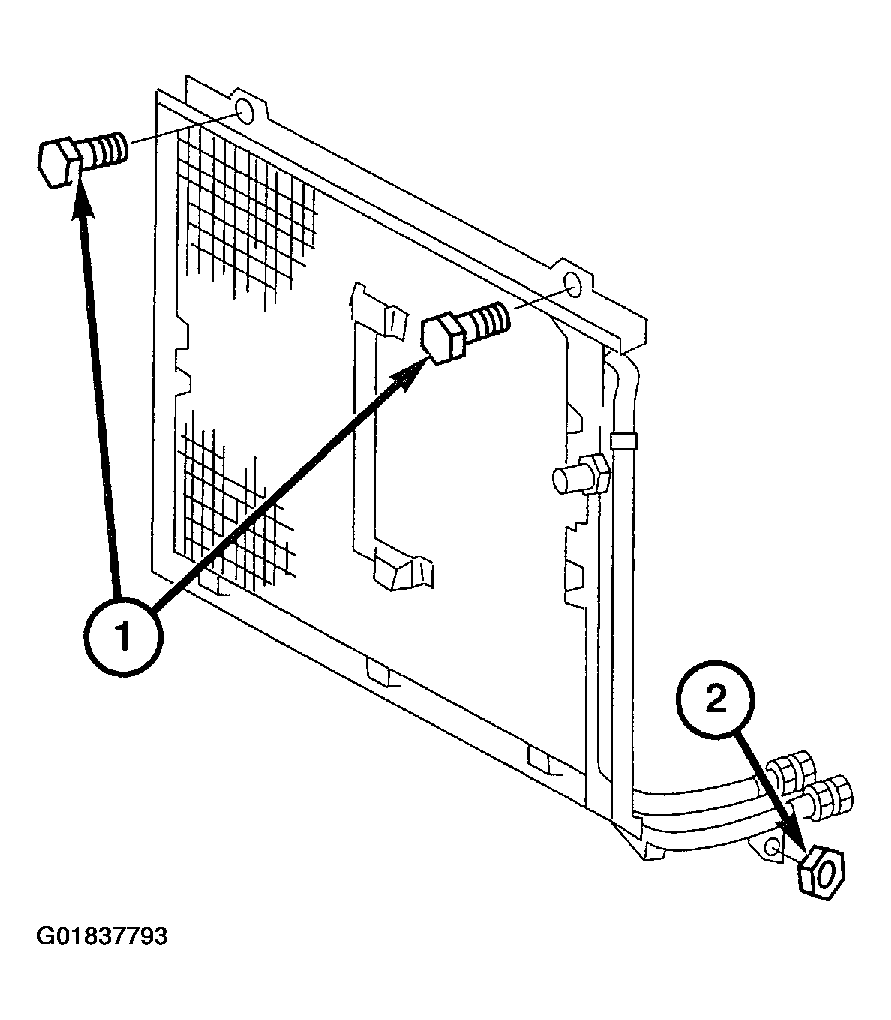

    Fig 3: Removing A/C Condenser To Radiator Retaining Bolts
    G01837793Courtesy of DAIMLERCHRYSLER CORP.
  10. Remove the radiator from the vehicle.
