Radiator Fan: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the radiator fan harness connector (1).

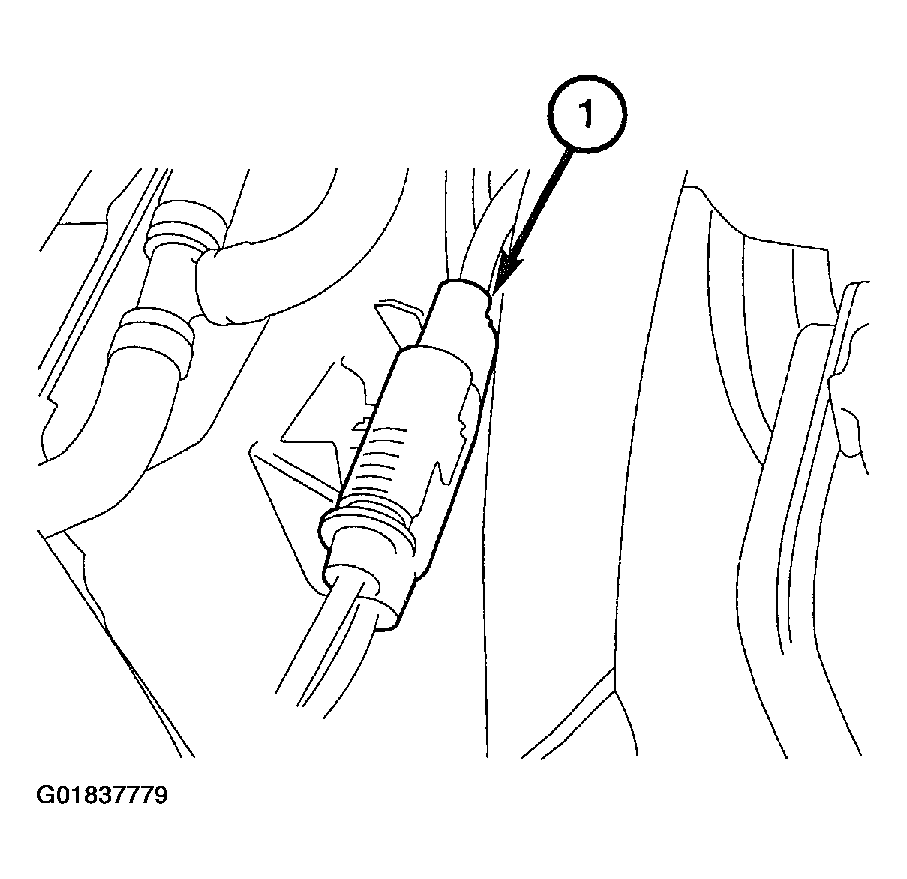

    Fig 1: Disconnecting Radiator Fan Harness Connector
    G01837779Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the coolant hose (1) from the mounting bracket (2).
    Fig 2: Removing Coolant Hose
    G01837780Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the radiator fan hold down clamps (1).

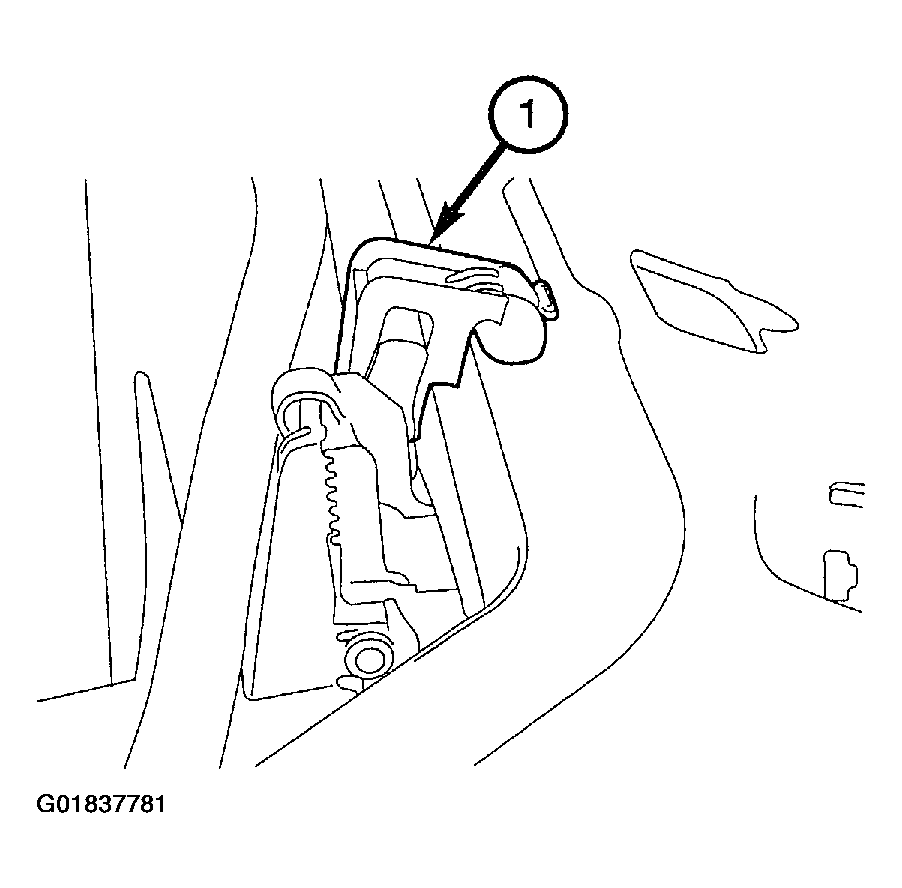

    Fig 3: Removing Radiator Fan Hold Down Clamps
    G01837781Courtesy of DAIMLERCHRYSLER CORP.
  5. Lift the radiator fan up and out of the vehicle.
