Coolant Level Sensor: Removal

  1. Partially drain the cooling system. See DRAINING COOLING SYSTEM .
  2. Disconnect the coolant level sensor harness connector (1).
  3. Depress the locking tabs and pull the coolant level sensor (2) from the coolant recovery reservoir.

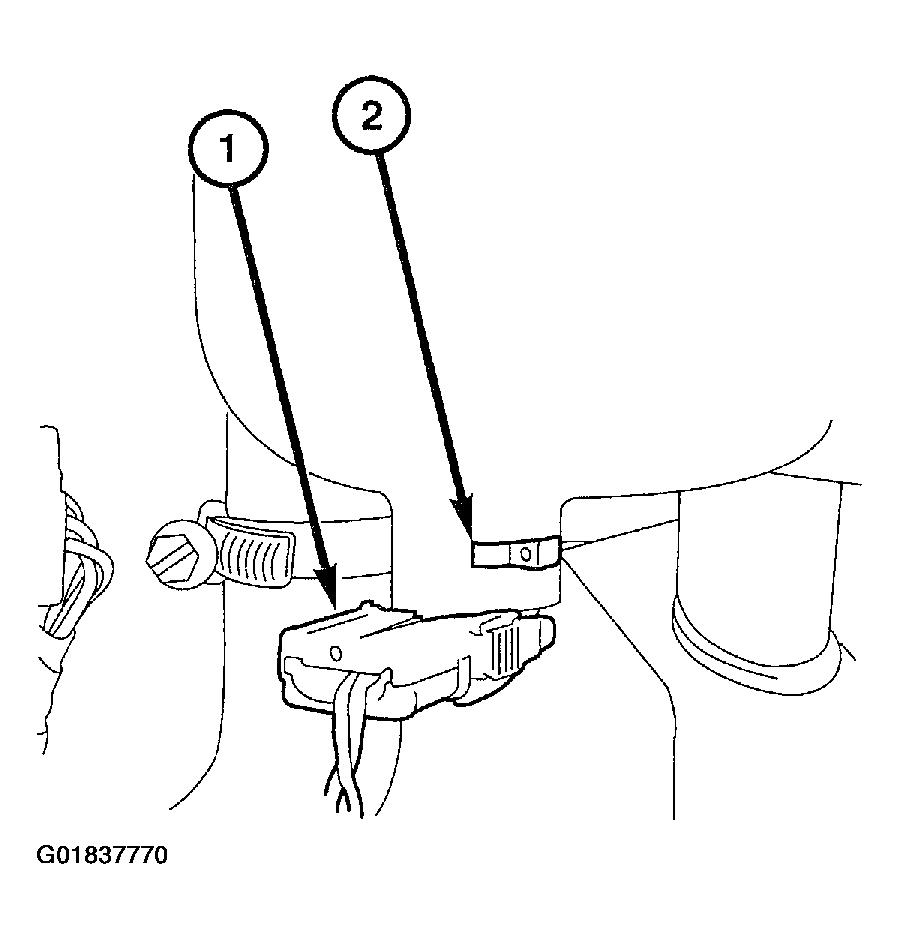

    Fig 1: Removing Coolant Level Sensor
    G01837770Courtesy of DAIMLERCHRYSLER CORP.
