Gearshift Rod: Removal

  1. Raise and support the vehicle.
  2. Remove the retaining clip at the shifter (1). See Fig 1 .
  3. Remove the retaining clip at the transmission shift arm and remove the shift rod from the vehicle.

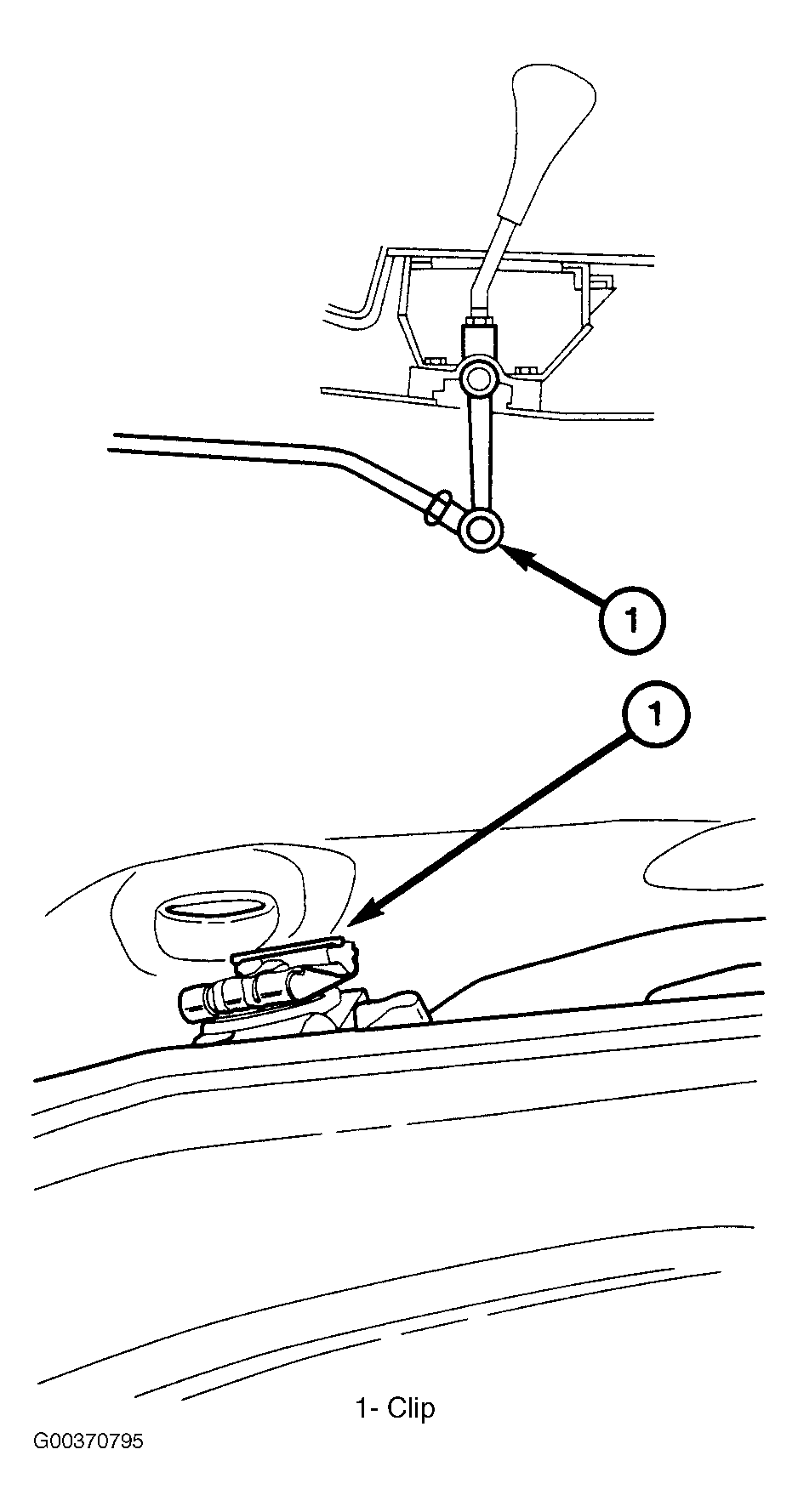

Fig 1: Removing Gearshift Rod
G00370795Courtesy of CHRYSLER CORP.
