Shift Interlock Solenoid

  1. Set the parking brake.
  2. Remove the front center console.
  3. Remove the shifter outer cover.
  4. Set the selector lever to Neutral. Lever must be touching the slot (arrow).
  5. Energize the interlock solenoid (3). See Fig 1 .
  6. Loosen the bolts (1). See Fig 1 .
  7. Adjust the gap between the locking lever (4) and the cam plate (5) to .02 mm using the adjusting screw (2). See Fig 1 .
  8. Tighten the bolts (1) to 31 INCH Lbs. (3.5 N.m.). See Fig 1 .
  9. Install the shifter outer cover.
  10. Install the console.

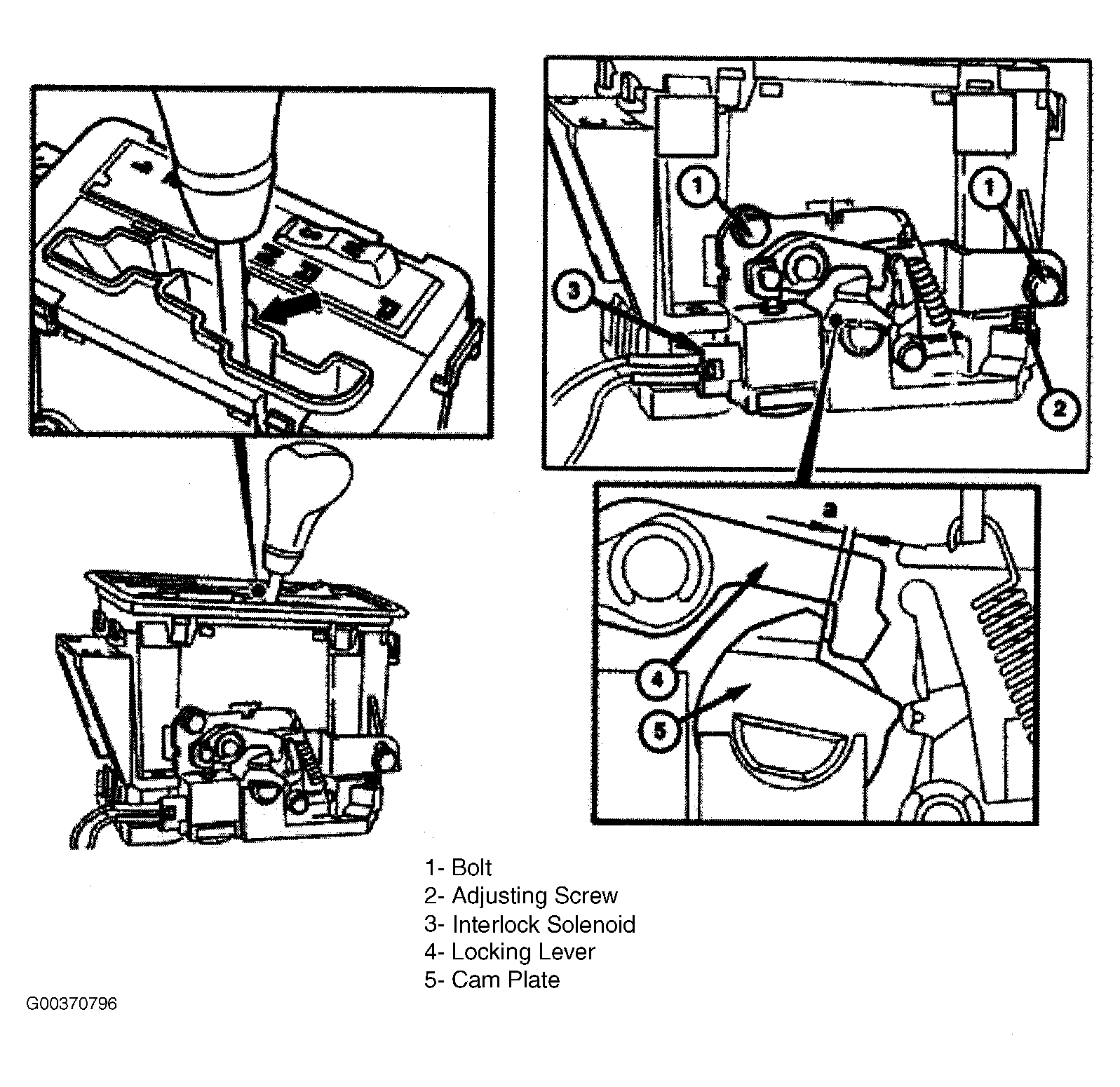

Fig 1: Adjusting Shift Interlock Solenoid
G00370796Courtesy of CHRYSLER CORP.
