Anti Theft Tow Sensor Connector End View

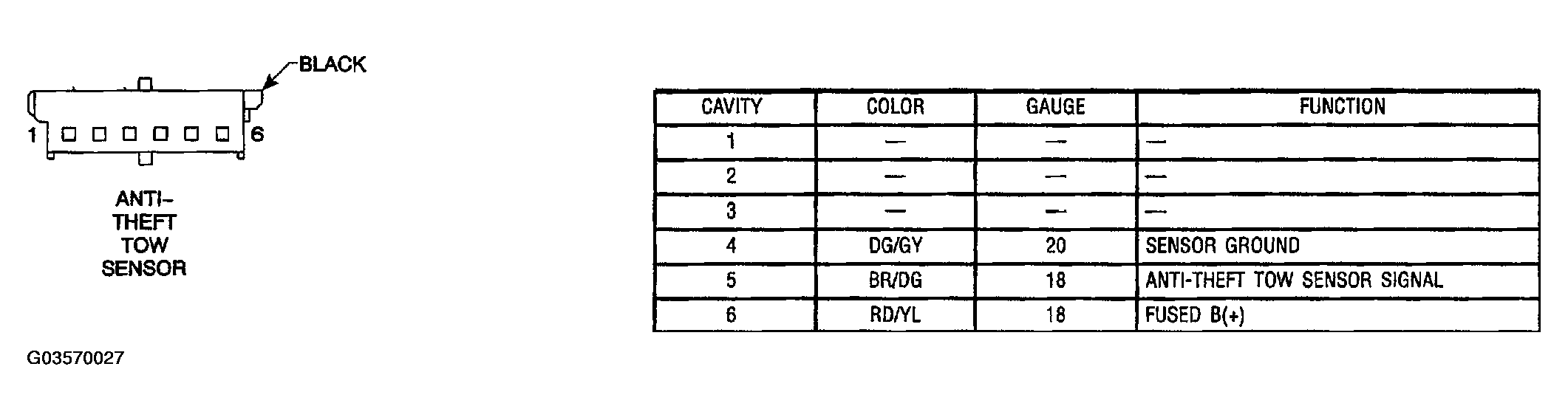

Fig 1: Anti Theft Tow Sensor Connector End View

G03570027

Courtesy of DAIMLERCHRYSLER CORP.
