4. Enhanced Accident Report Driver Signal Circuit Open

With the ignition off.

Measure the resistance of the Enhanced Accident Report Driver Signal circuit from the PCM C4 harness connector to the ORC harness connector.

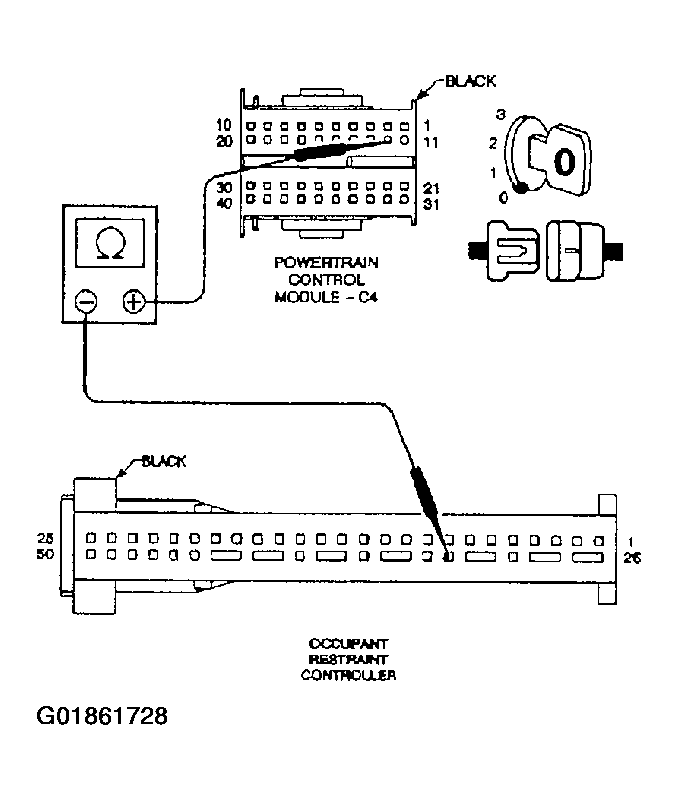

Fig 1: Measuring Resistance Of Enhanced Accident Report Driver Signal Circuit

Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

1. Yes  >> Go To 5
2. No  >> Repair the Enhanced Accident Report Driver Signal circuit for an open.

   See POWERTRAIN VERIFICATION TEST - VER 2  .
