3. Pcm And SKREEM Can C Bus Termination

Turn the ignition off.

Measure the resistance of the PCM CAN C BUS termination by backprobing the CAN C BUS (+) circuit to the CAN C BUS (-) circuit at the PCM C4 harness connector.

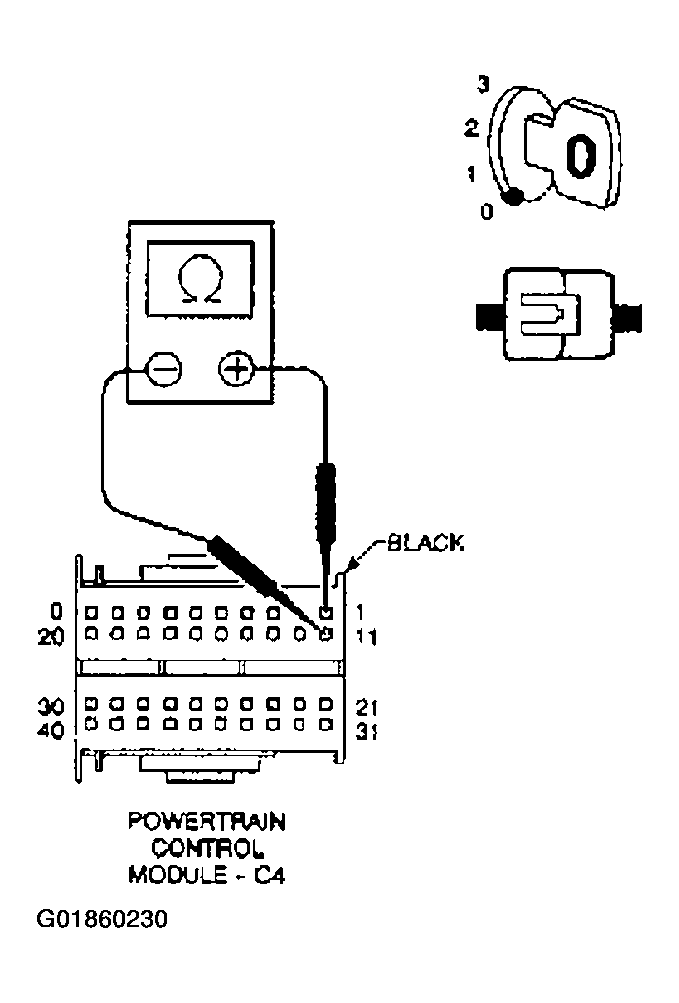

Fig 1: Measuring Resistance Of PCM CAN C BUS Termination
G01860230Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance between 50 and 70 ohms?

  1. Yes  >> Go To 11
  2. No  >> Go To 4
