Circuit Diagram & Connector Identification

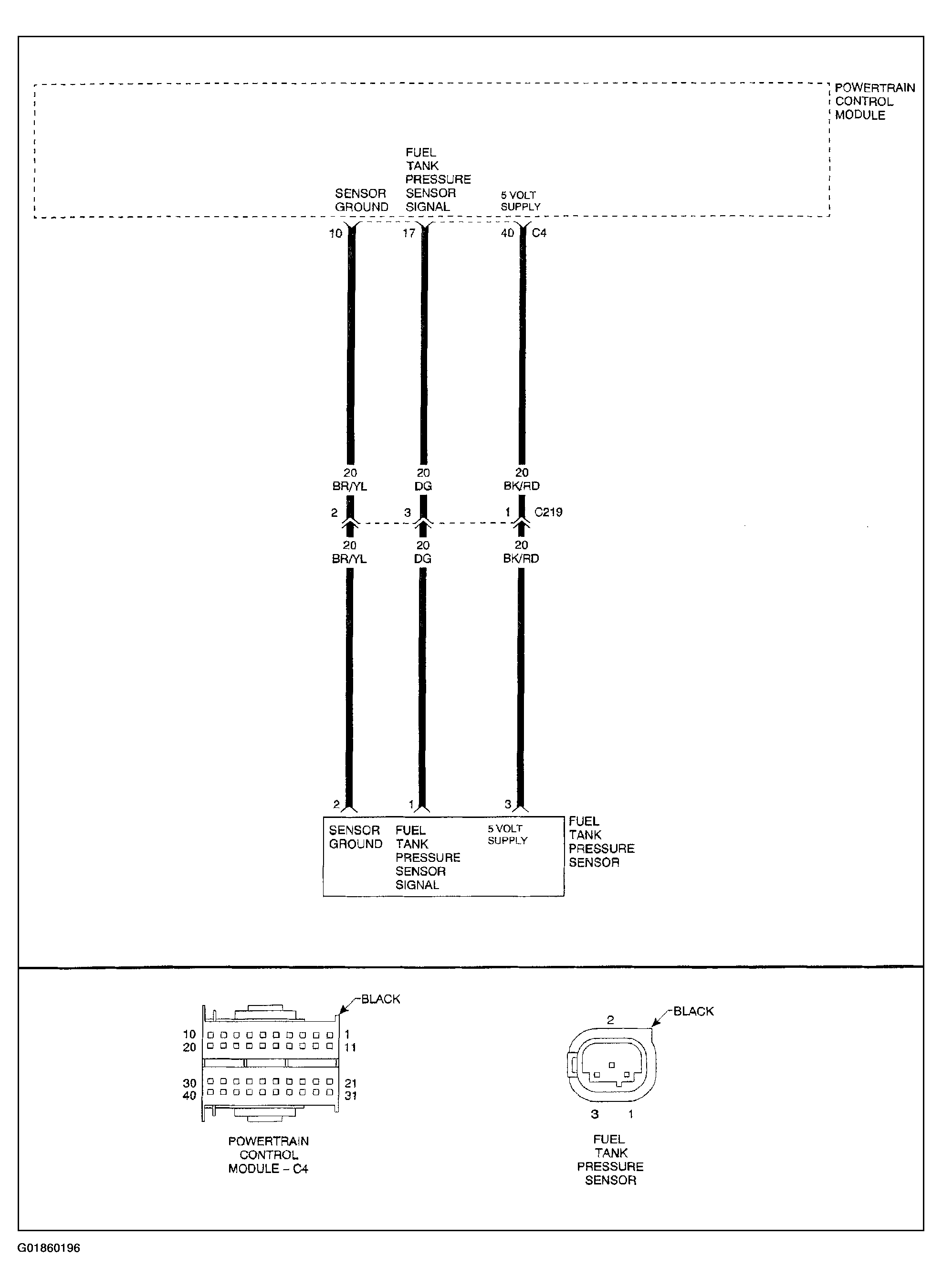

Fig 1: Identifying DTC P0455 Circuit Diagram & Connector Identification

G01860196

Courtesy of DAIMLERCHRYSLER CORP.
