Circuit Diagram & Connector Identification

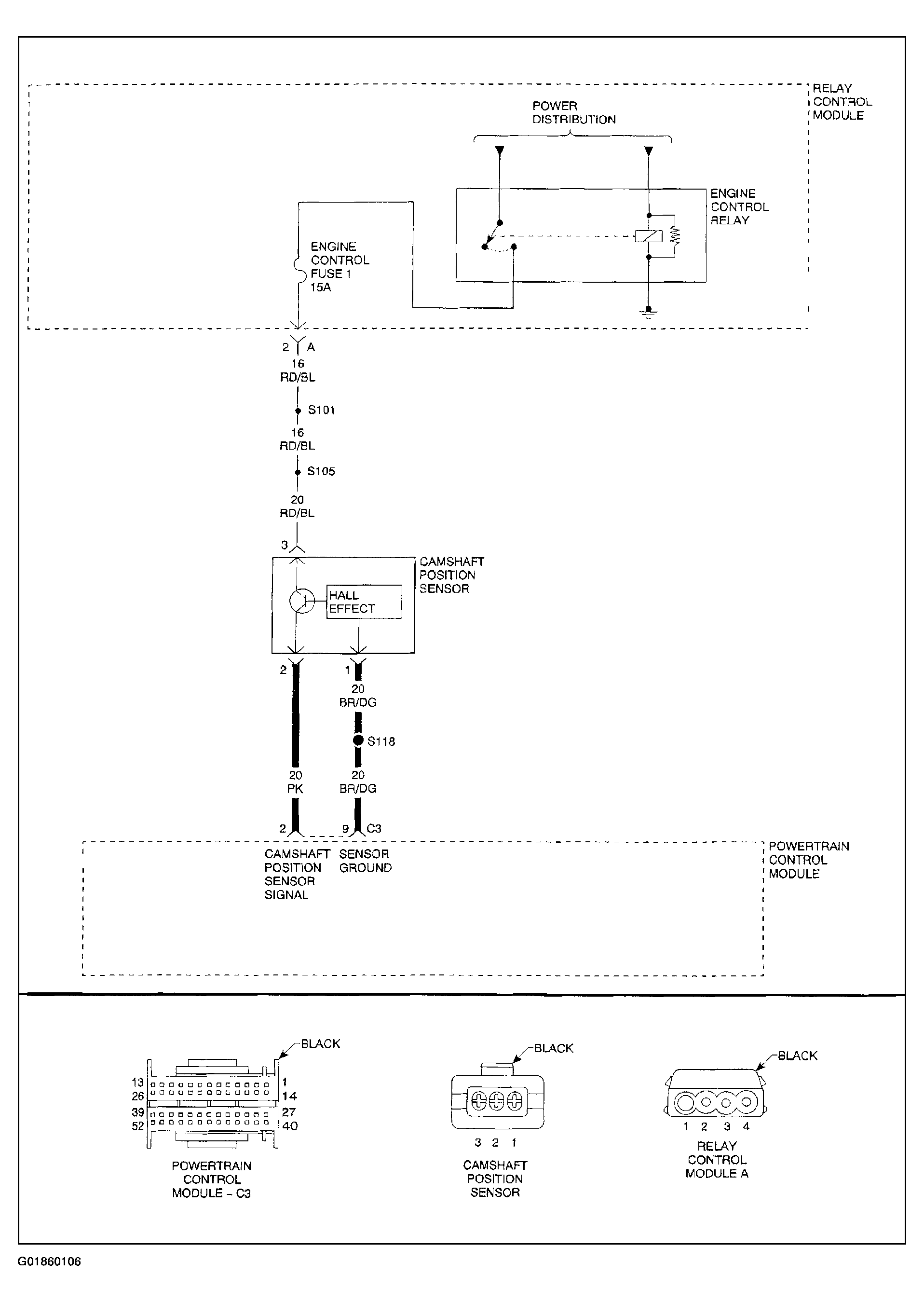

Fig 1: Identifying DTC P0341 Circuit Diagram & Connector Identification

G01860106

Courtesy of DAIMLERCHRYSLER CORP.
