4. CKP Sensor Ground Circuit

With the ignition on.

Measure the voltage of the CKP Sensor Ground circuit at the CKP Sensor harness connector.

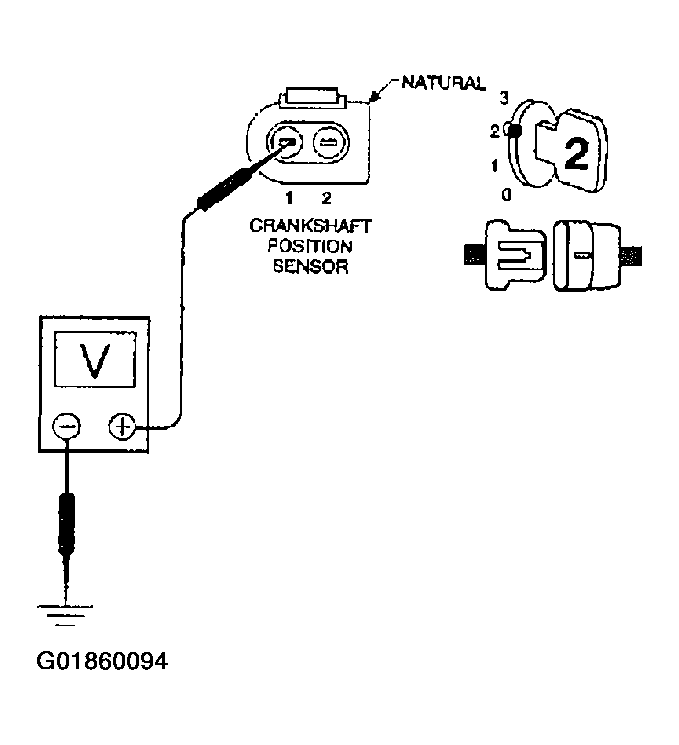

Fig 1: Measuring Voltage Of CKP Sensor Ground Circuit At CKP Sensor Harness Connector
G01860094Courtesy of DAIMLERCHRYSLER CORP.

Is the voltage between 2.2 and 2.7 volts?

  1. Yes  >> Go To 11
  2. No  >> Go To 5
