Circuit Diagram & Connector Identification

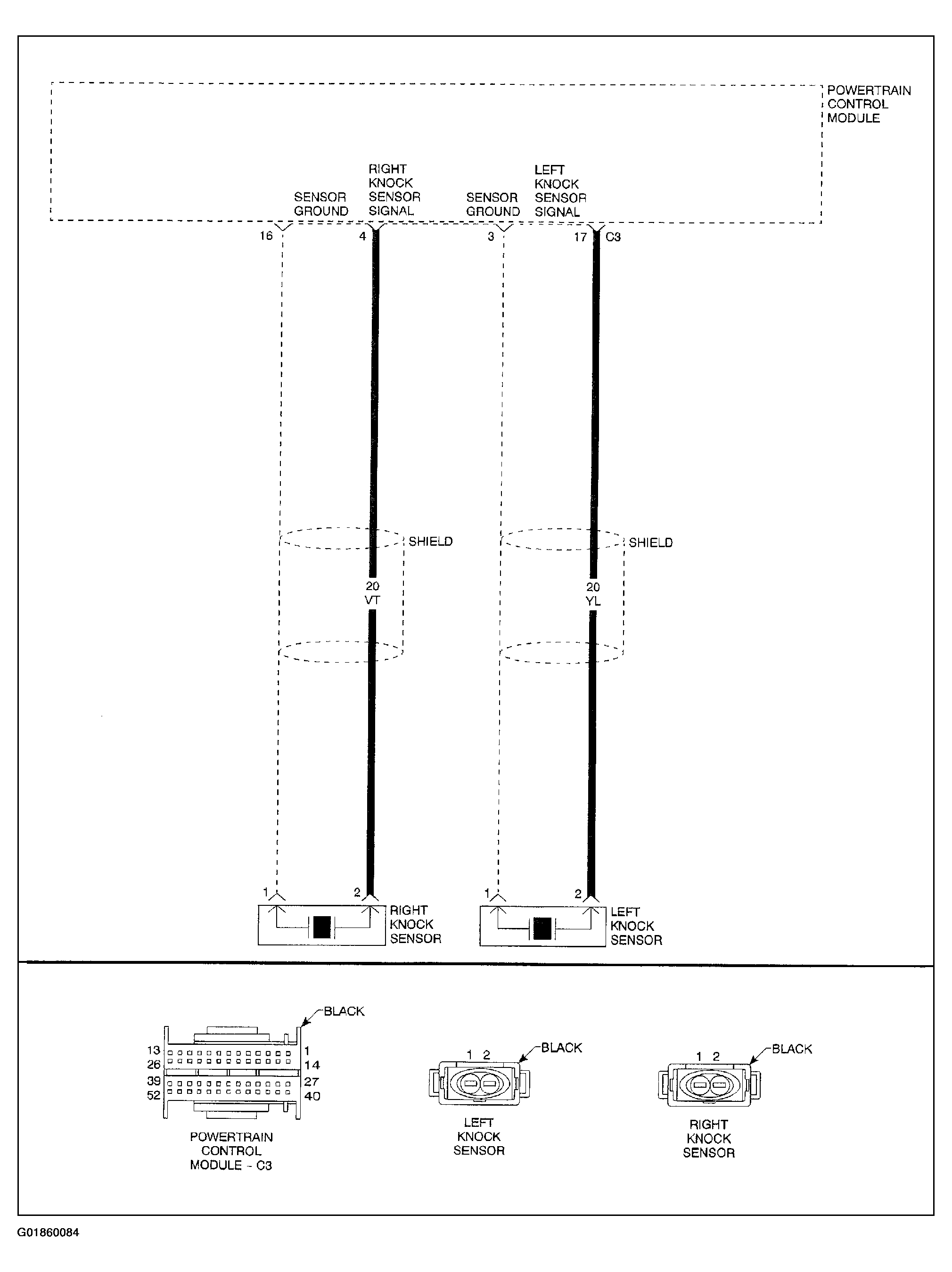

Fig 1: Identifying DTC P0330 Circuit Diagram & Connector Identification

G01860084

Courtesy of DAIMLERCHRYSLER CORP.
