5. Open Apps #2 Ground Circuit

With the ignition off.

Measure the resistance of the APPS #2 Ground circuit from the APPS harness connector to the PCM connector.

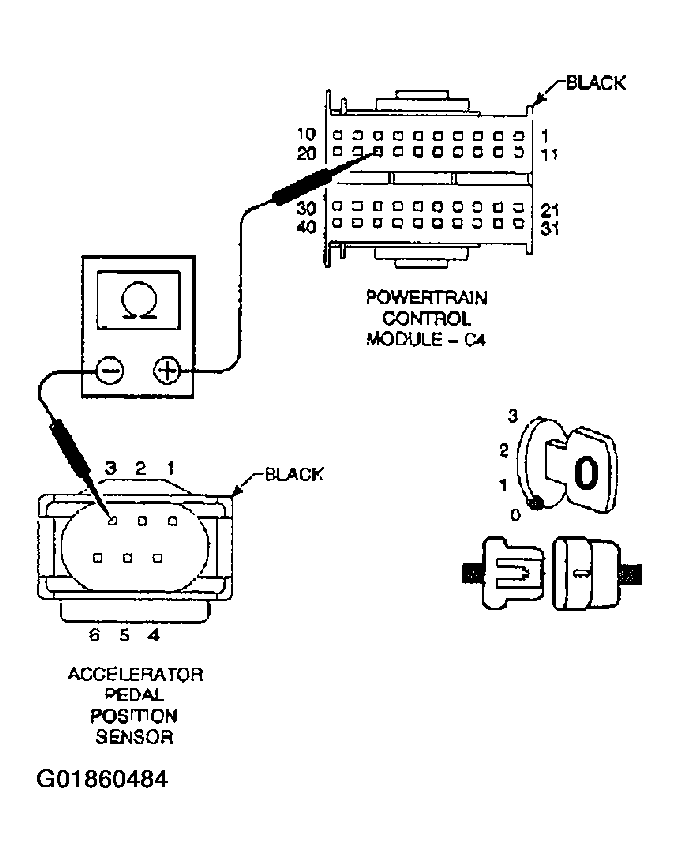

Fig 1: Measuring Resistance Of APPS #2 Ground Circuit
G01860484Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

  1. Yes  >> Go To 6
  2. No  >> Repair the APPS #2 Ground circuit for an open.

    See POWERTRAIN VERIFICATION TEST - VER 2  .
