Circuit Diagram & Connector Identification

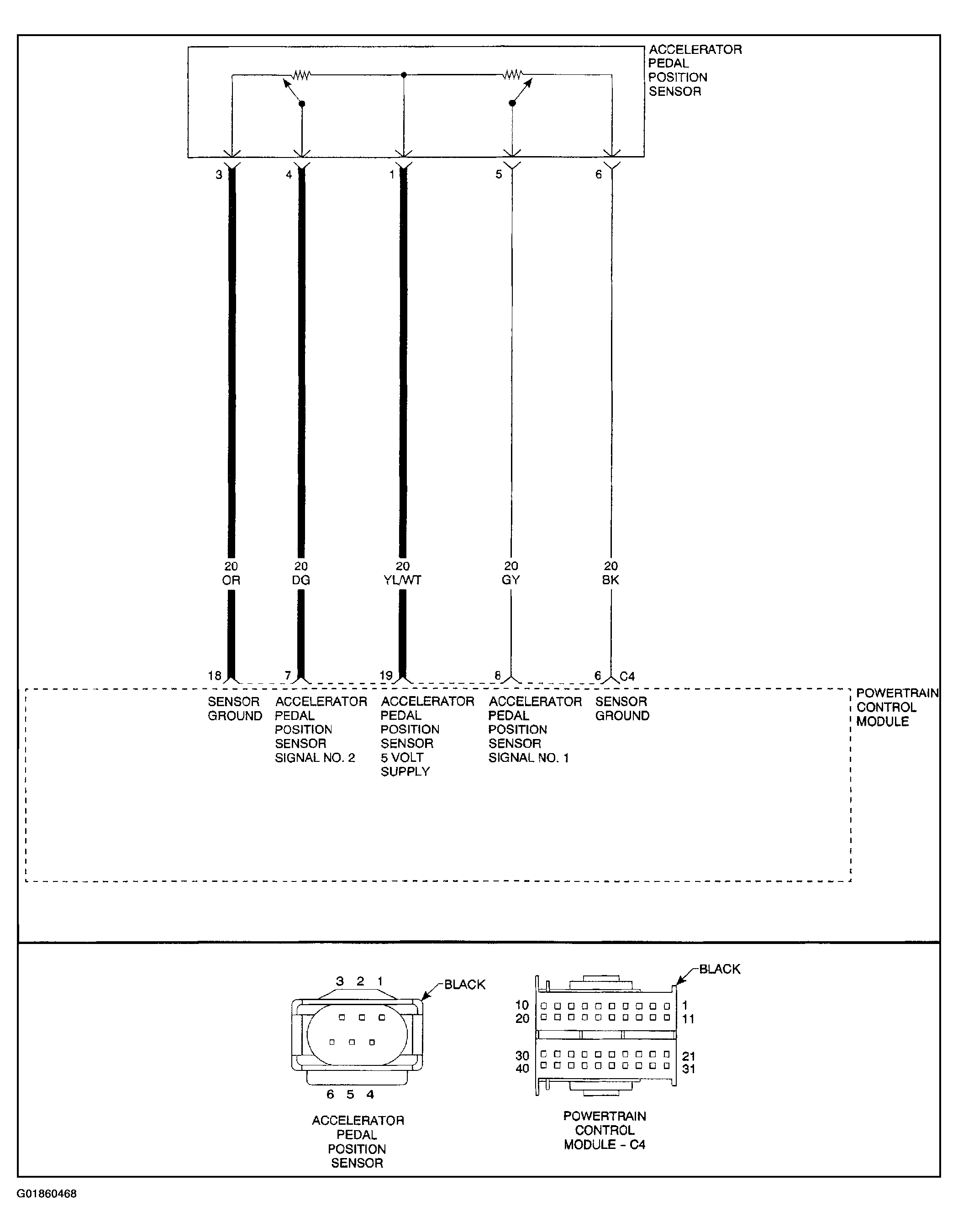

Fig 1: Identifying DTC P0222 Circuit Diagram & Connector Identification

G01860468

Courtesy of DAIMLERCHRYSLER CORP.
