Circuit Diagram & Connector Identification

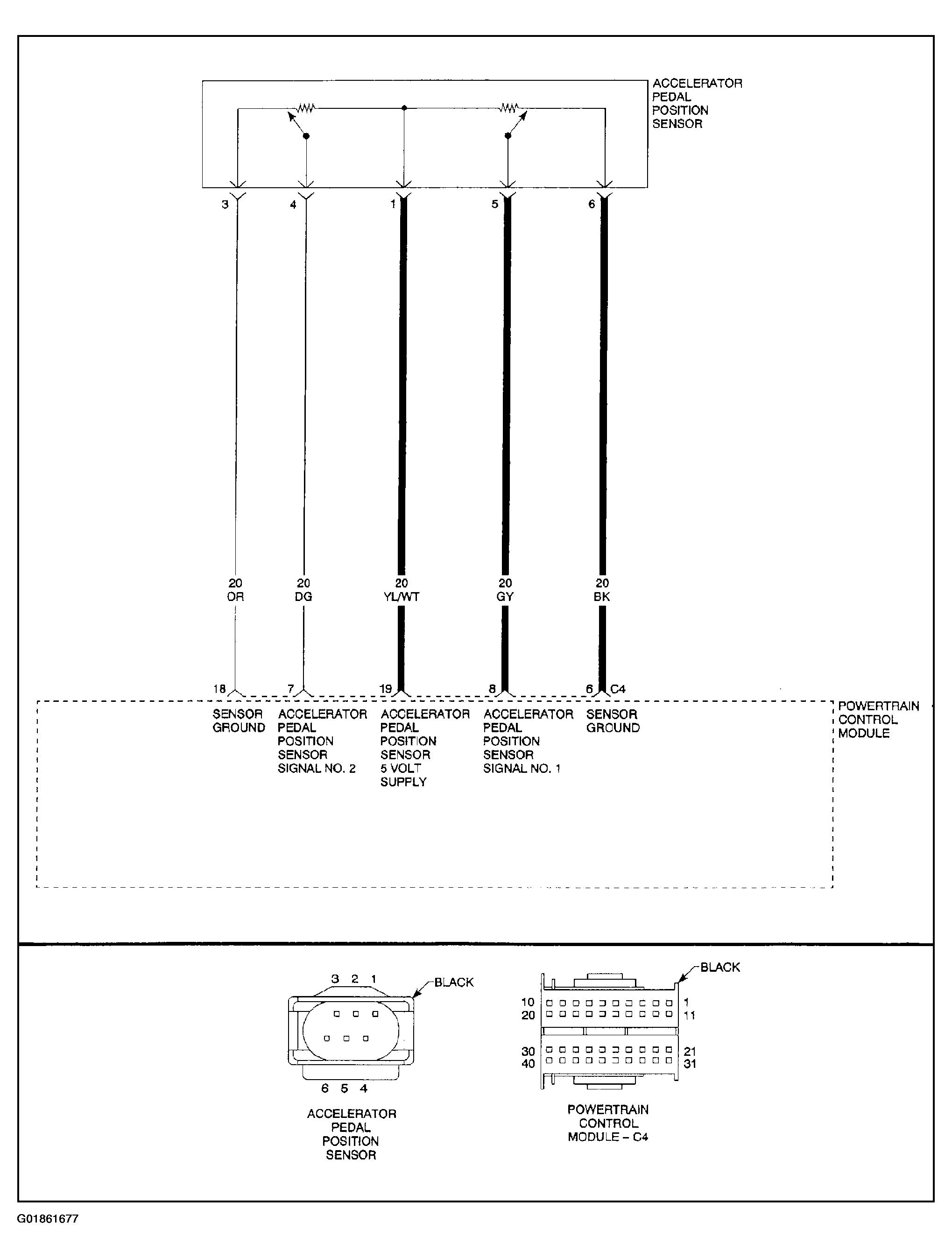

Fig 1: Identifying DTC P0123 Circuit Diagram & Connector Identification

G01861677

Courtesy of DAIMLERCHRYSLER CORP.
