Circuit Diagram & Connector Identification

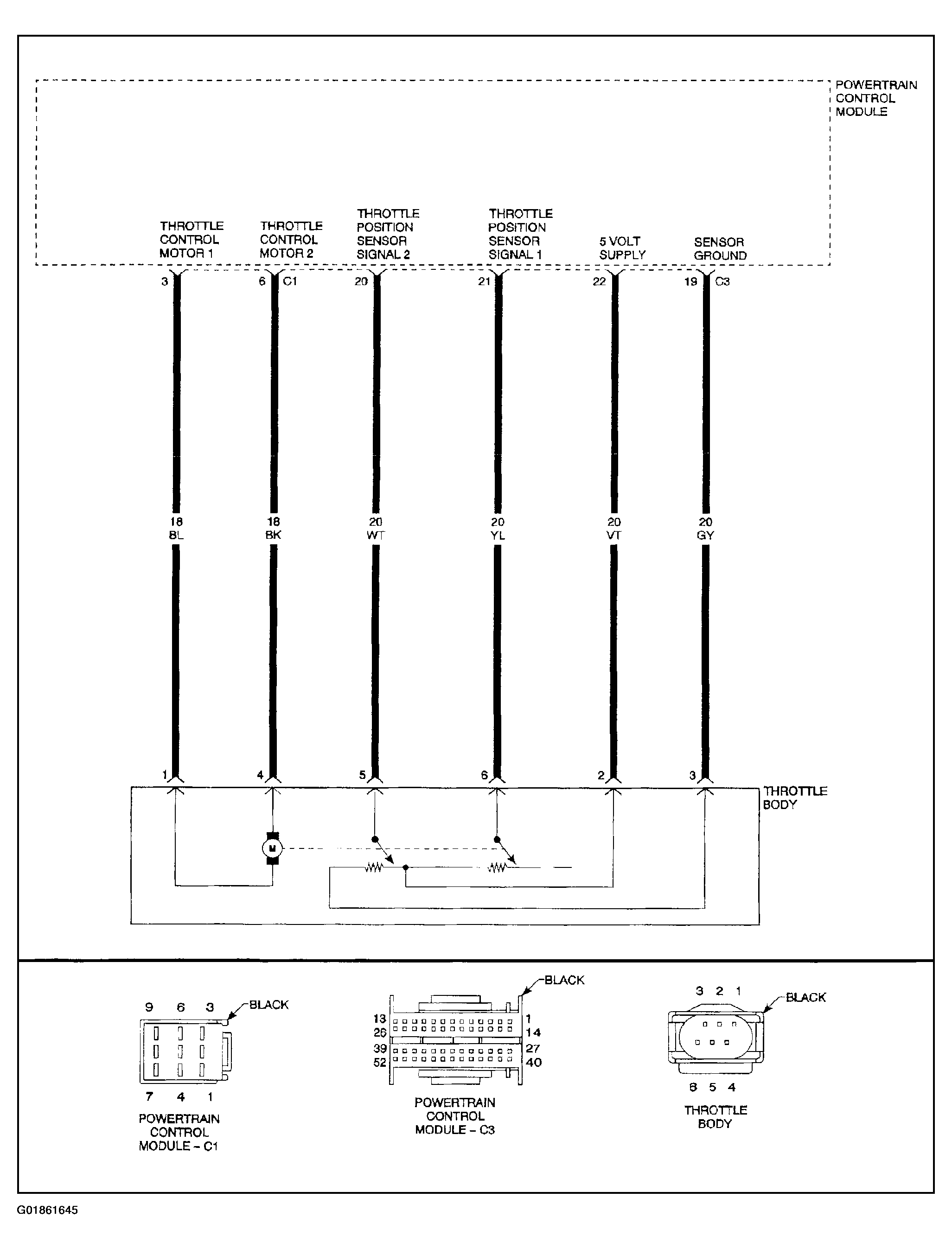

Fig 1: Identifying DTC P0120 Circuit Diagram & Connector Identification

G01861645

Courtesy of DAIMLERCHRYSLER CORP.
