Circuit Diagram & Connector Identification

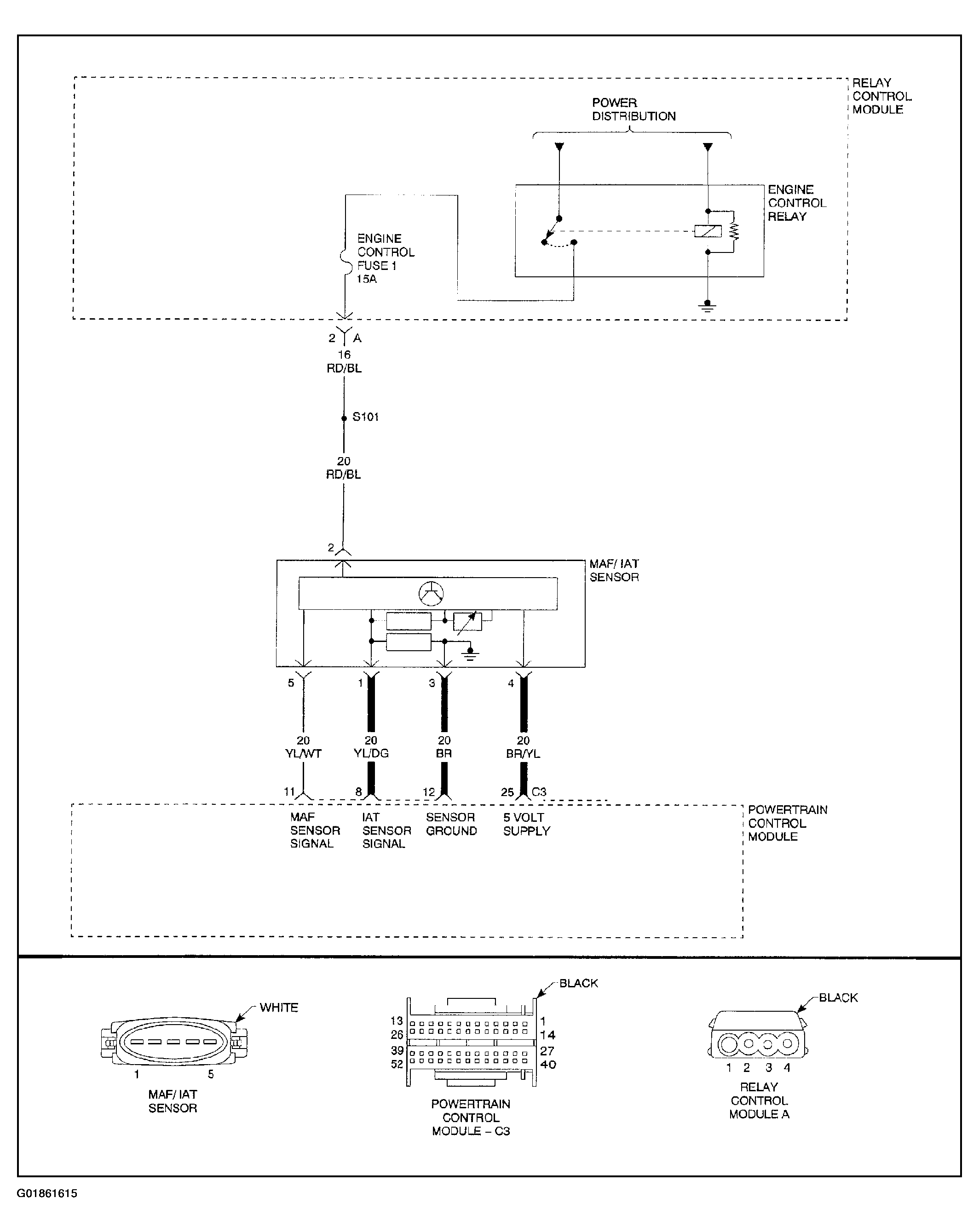

Fig 1: Identifying DTC P0113 Circuit Diagram & Connector Identification

G01861615

Courtesy of DAIMLERCHRYSLER CORP.
