8. MAF Sensor Signal Circuit Shorted To Ground

With the ignition off.

Measure the resistance between ground and the MAF Sensor Signal circuit.

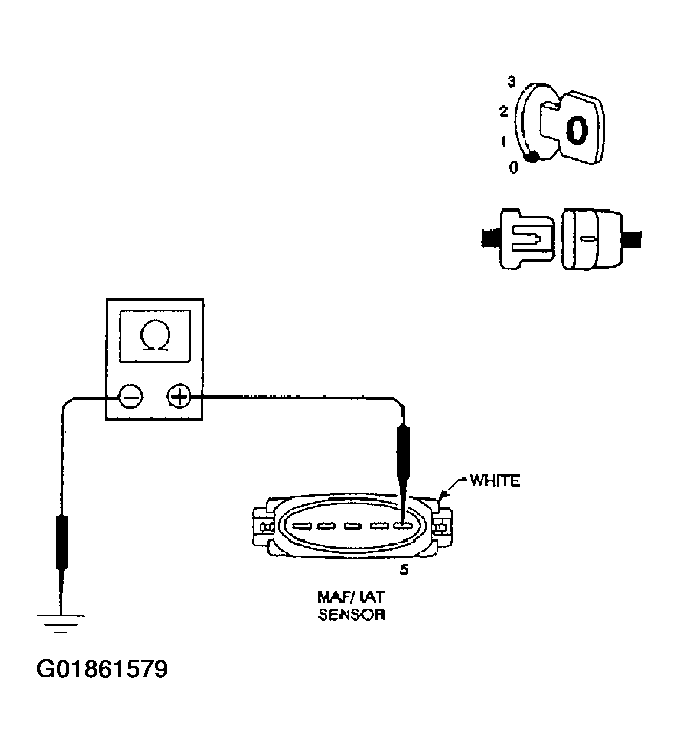

Fig 1: Measuring Resistance Between Ground & MAF Sensor Signal Circuit

Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 100 ohms?

1. Yes  >> Repair the MAF Sensor Signal circuit for a short to ground.

   See POWERTRAIN VERIFICATION TEST - VER 2  .

2. No  >> Go To 9
