Circuit Diagram & Connector Identification

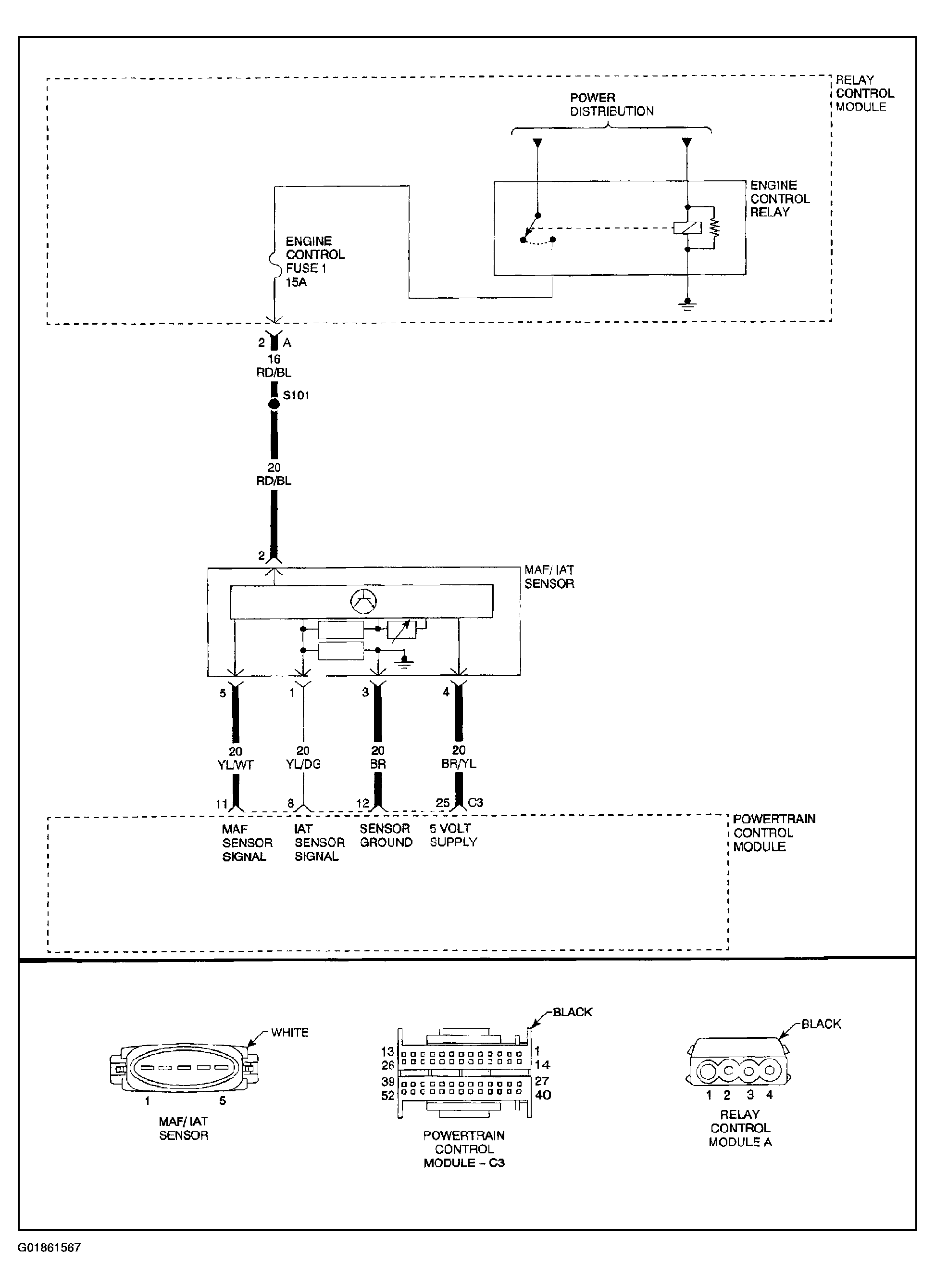

Fig 1: Identifying DTC P0101 Circuit Diagram & Connector Identification

G01861567

Courtesy of DAIMLERCHRYSLER CORP.
