Circuit Diagram & Connector Identification

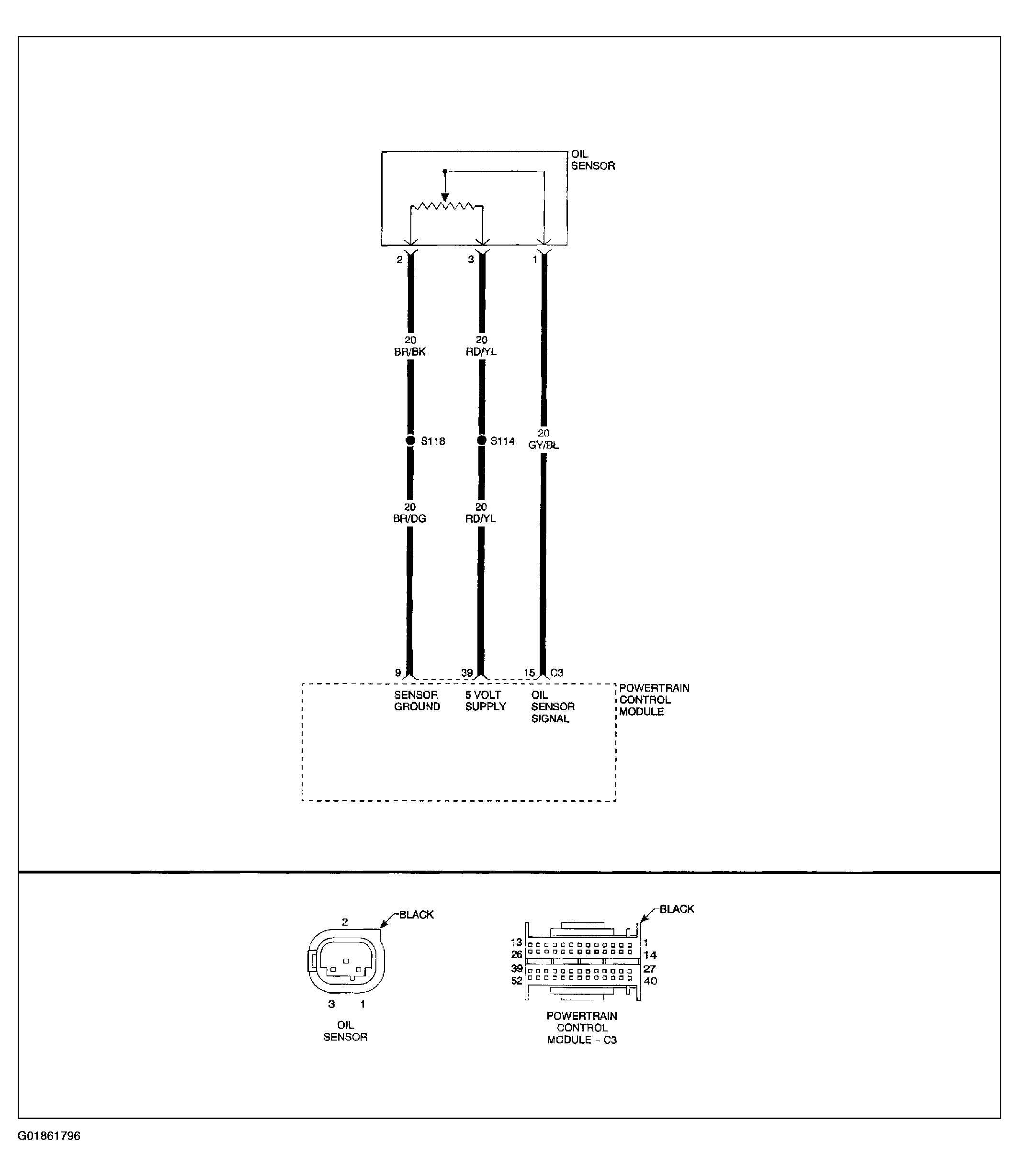

Fig 1: Identifying Engine Oil Sensor Water Contamination Circuit Diagram & Connector Identification

G01861796

Courtesy of DAIMLERCHRYSLER CORP.
