Back Up Lamp Switch Connector End View

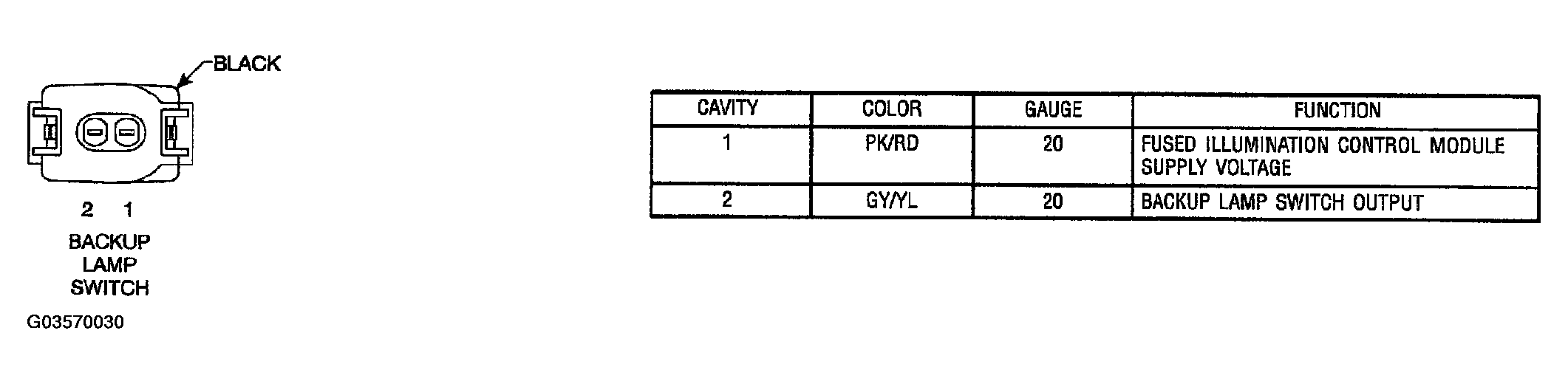

Fig 1: Back Up Lamp Switch Connector End View

G03570030

Courtesy of DAIMLERCHRYSLER CORP.
