Remote Keyless Entry Relay Connector End View

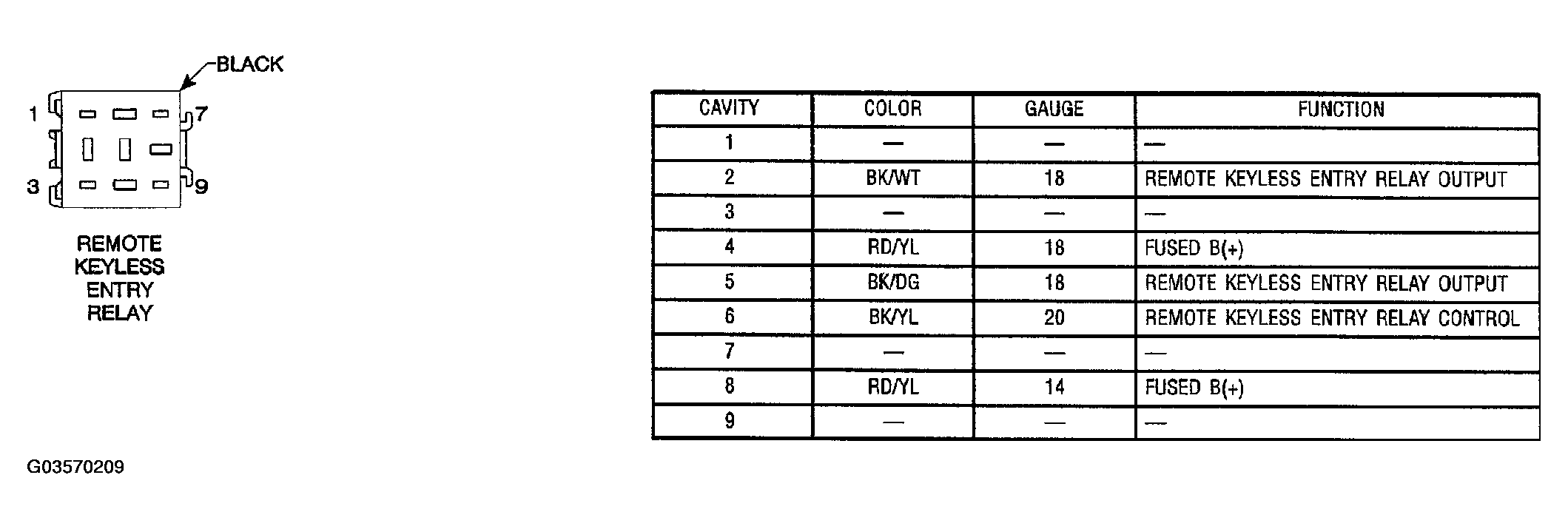

Fig 1: Remote Keyless Entry Relay Connector End View

G03570209

Courtesy of DAIMLERCHRYSLER CORP.
