Pulse Module Connector End View (A)

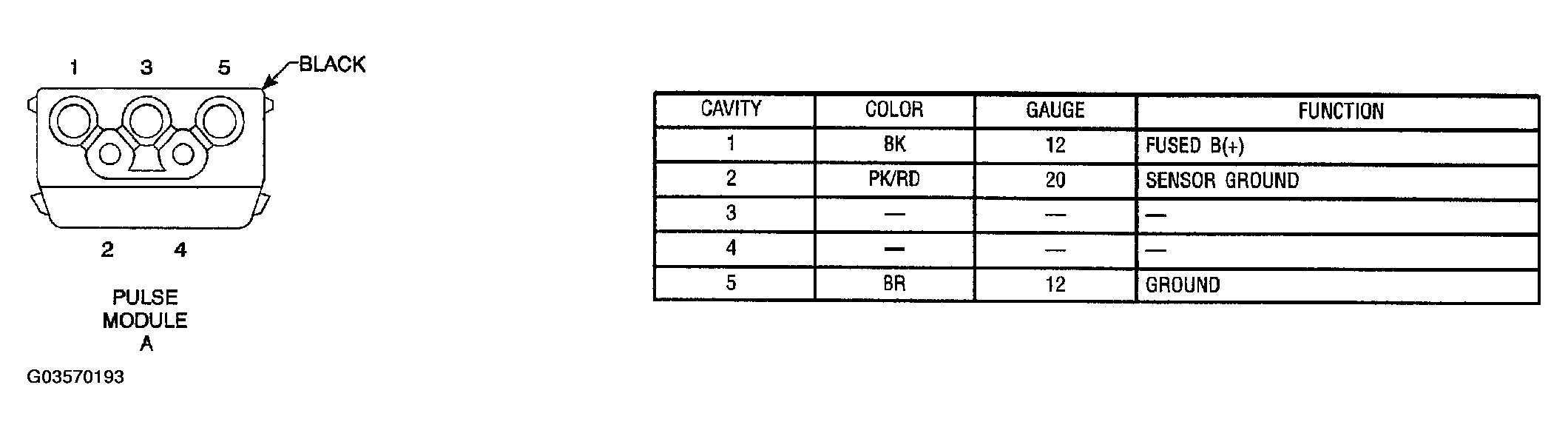

Fig 1: Pulse Module Connector End View (A)

G03570193

Courtesy of DAIMLERCHRYSLER CORP.
