Power Amplifier Connector End View (B)

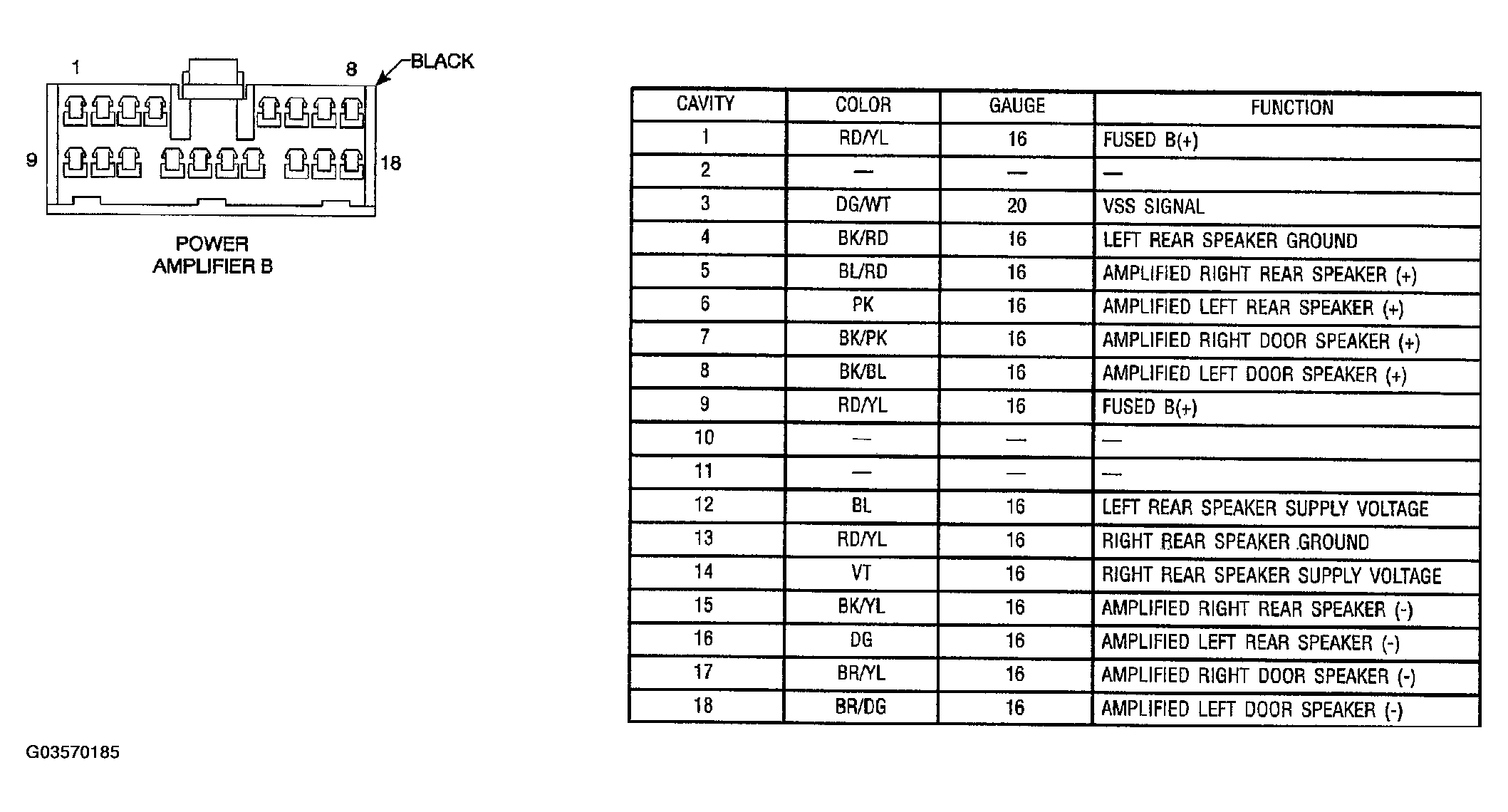

Fig 1: Power Amplifier Connector End View (B)

G03570185

Courtesy of DAIMLERCHRYSLER CORP.
