Left Rear Lamp Assembly Connector End View

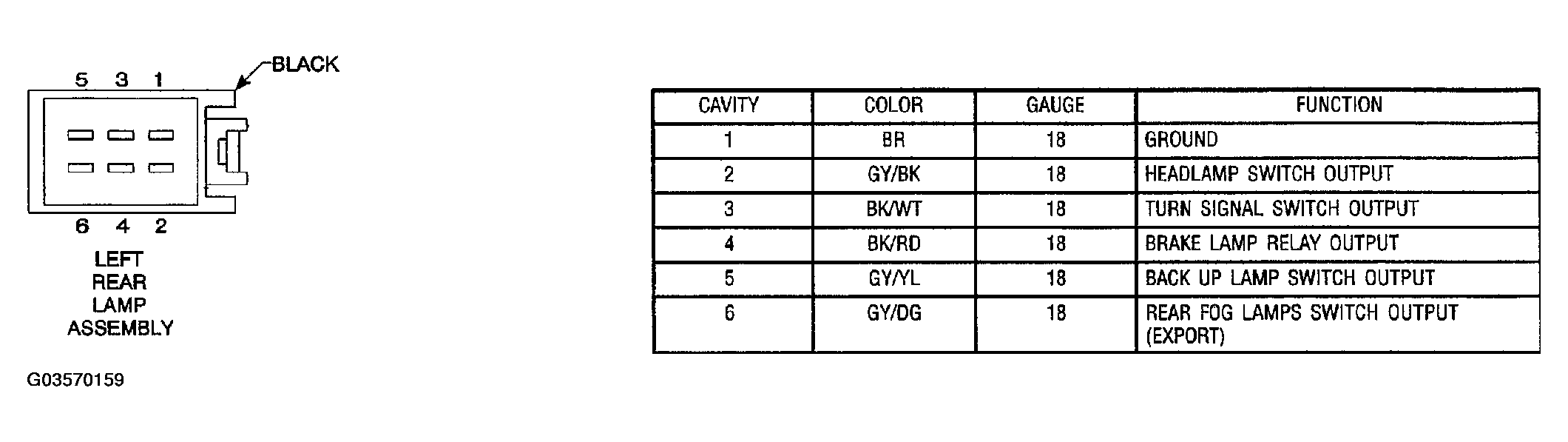

Fig 1: Left Rear Lamp Assembly Connector End View

G03570159

Courtesy of DAIMLERCHRYSLER CORP.
