Inline Connector End View (C226)

Fig 1: Inline Connector End View (C226)

G03570070

Courtesy of DAIMLERCHRYSLER CORP.

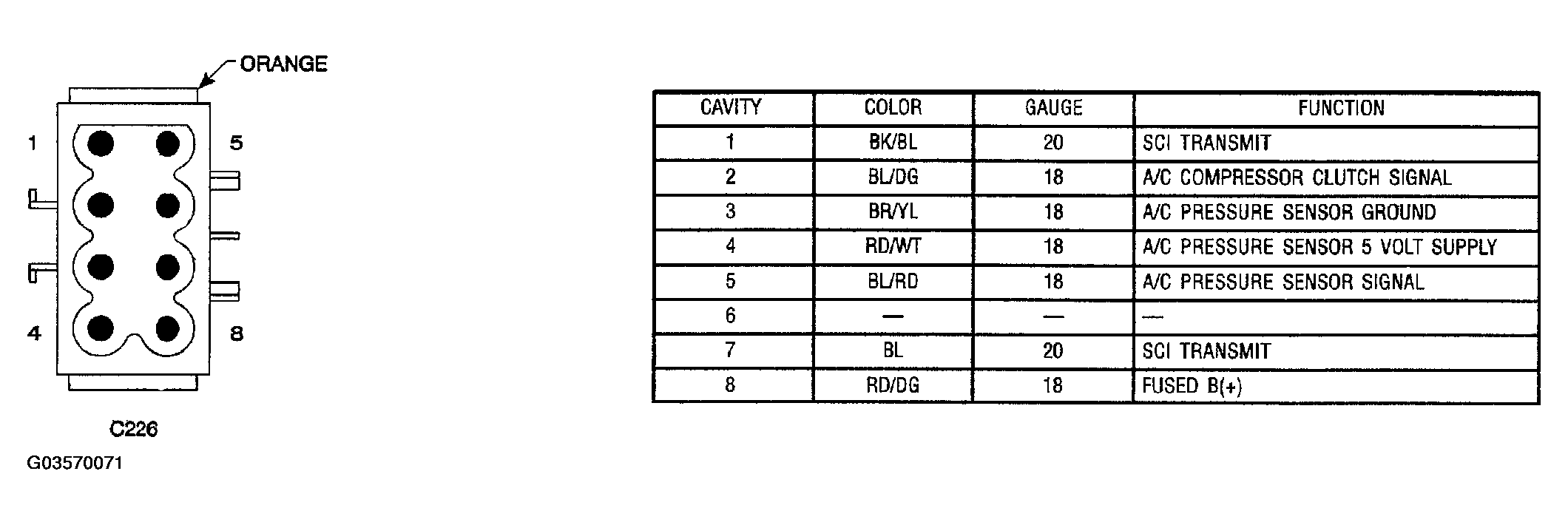

Fig 1: Inline Connector End View (C226)

G03570071

Courtesy of DAIMLERCHRYSLER CORP.
