4. Measure Right Power Window Switch Sense Circuit Resistance

Turn the ignition off.

Measure the resistance of the Right Front Power Window Switch Sense circuit from the Right Front Power Window Switch harness connector to the BCM harness connector.

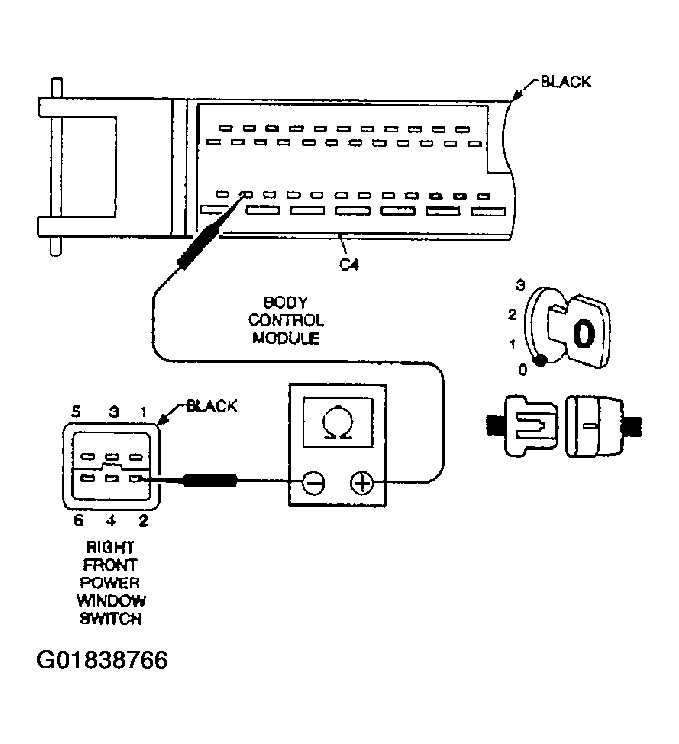

Fig 1: Measuring Right Front Power Window Switch Sense Circuit Resistance

Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

1. Yes  >> Replace the Body Control Module. See ELECTRONIC CONTROL MODULES article.

   See BODY VERIFICATION TEST  .

2. No  >> Repair the Right Power Window Switch Sense circuit for an open.

   See BODY VERIFICATION TEST  .
