Seat Back: Removal: Notes

  1. Remove the front seat. See SEAT .
  2. Remove the seat cushion. See SEAT CUSHION .
  3. Loosen the bolt on the seat height adjustment by removing the left and right bolts (2).
  4. Remove the bolts (1) from the seat back.

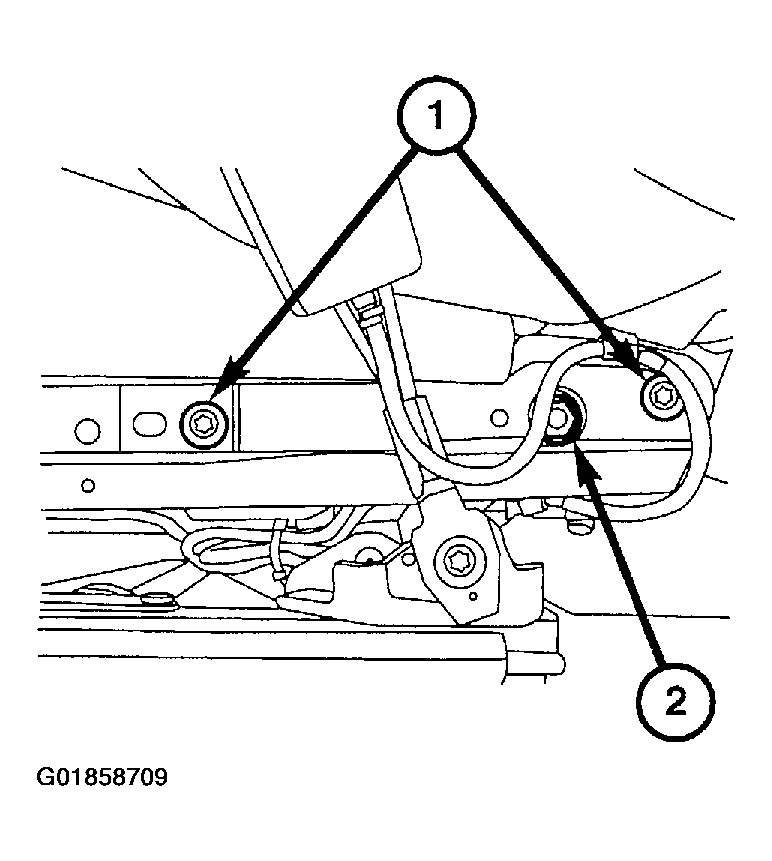

    Fig 1: Loosening & Removing Bolts
    G01858709Courtesy of DAIMLERCHRYSLER CORP.
  5. Disconnect the seat back heater and adjustment electrical connectors.
  6. Remove the seat back from the frame.
