Gas Prop: Installation

Place the gas prop on its upper and lower mounting points and push it in until it clicks.

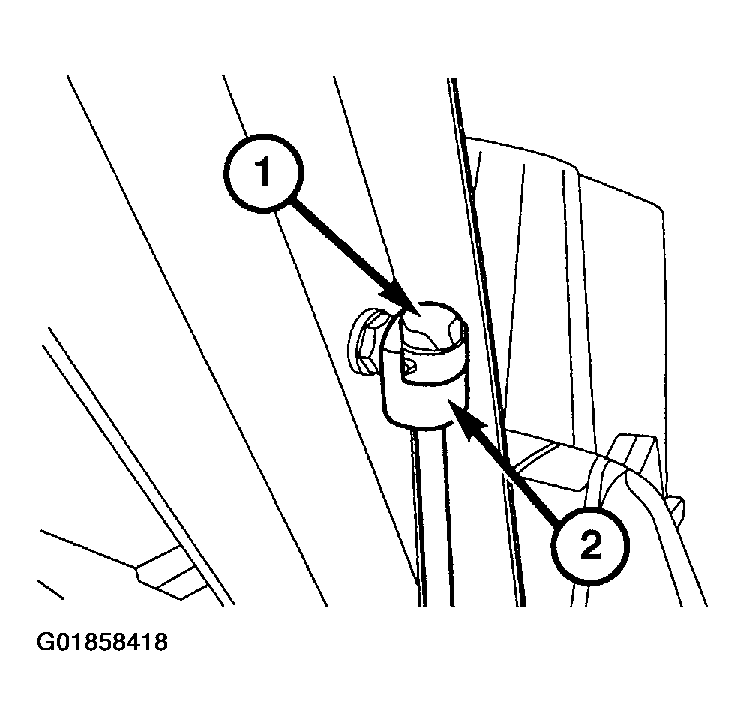

Install the upper lock cap (1) on the gas prop (2).

Fig 1: Installing Gas Prop & Lock Cap (Upper End)
Courtesy of DAIMLERCHRYSLER CORP.
Install the lower lock cap (1) on the gas prop (2).

Fig 2: Installing Gap Prop & Lock Cap (Lower End)
Courtesy of DAIMLERCHRYSLER CORP.
Verify the rear liftgate operation.
