Exterior Handle: Disassembly

  1. Disconnect the rear liftgate release handle linkage by pushing the arm (1) up off the linkage and then pulling the linkage out of the latch.

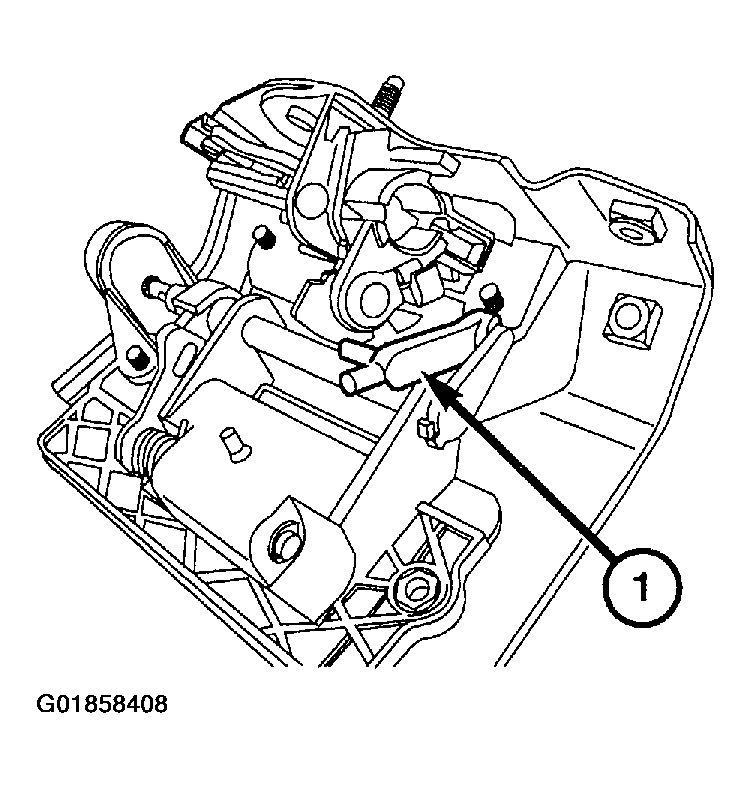

    Fig 1: Disconnecting Rear Liftgate Release Handle Linkage
    G01858408Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove the remaining handle retaining bolt (1) and remove the handle assembly from the latch assembly bracket.

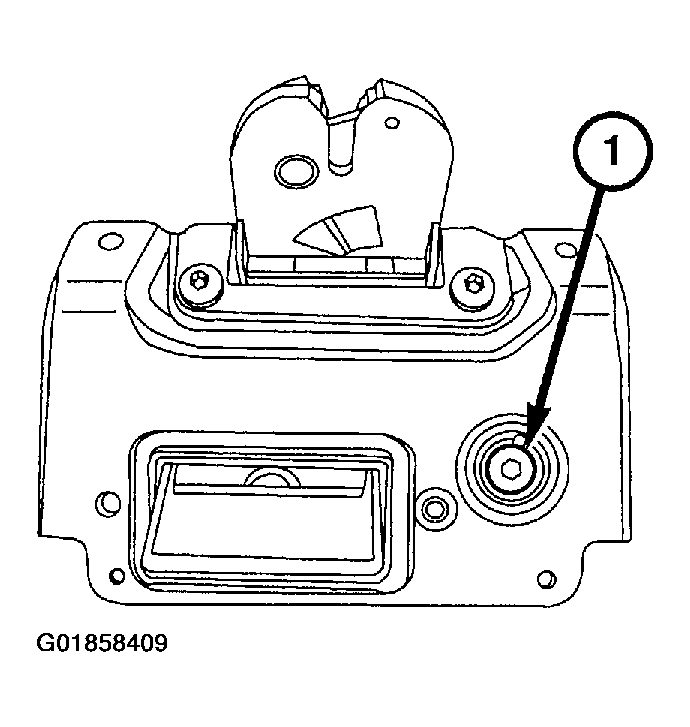

    Fig 2: Removing Remaining Retaining Bolt & Removing Handle Assembly
    G01858409Courtesy of DAIMLERCHRYSLER CORP.
