Exterior Handle: Assembly

  1. Install the liftgate release handle assembly on the latch bracket. Install the retaining bolt (1). Tighten to 8 N.m (71 in. lbs.).

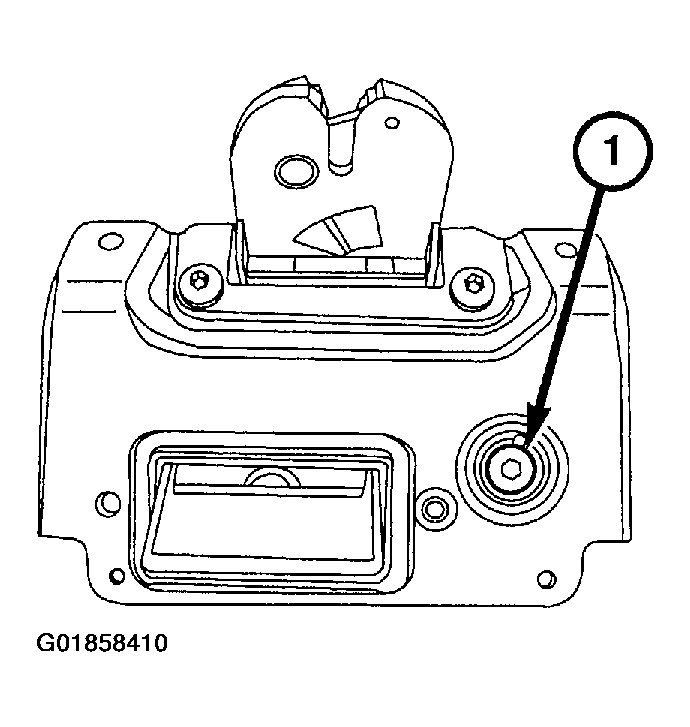

    Fig 1: Installing Liftgate Release Handle Assembly
    G01858410Courtesy of DAIMLERCHRYSLER CORP.
  2. Connect the rear liftgate release handle linkage (1).

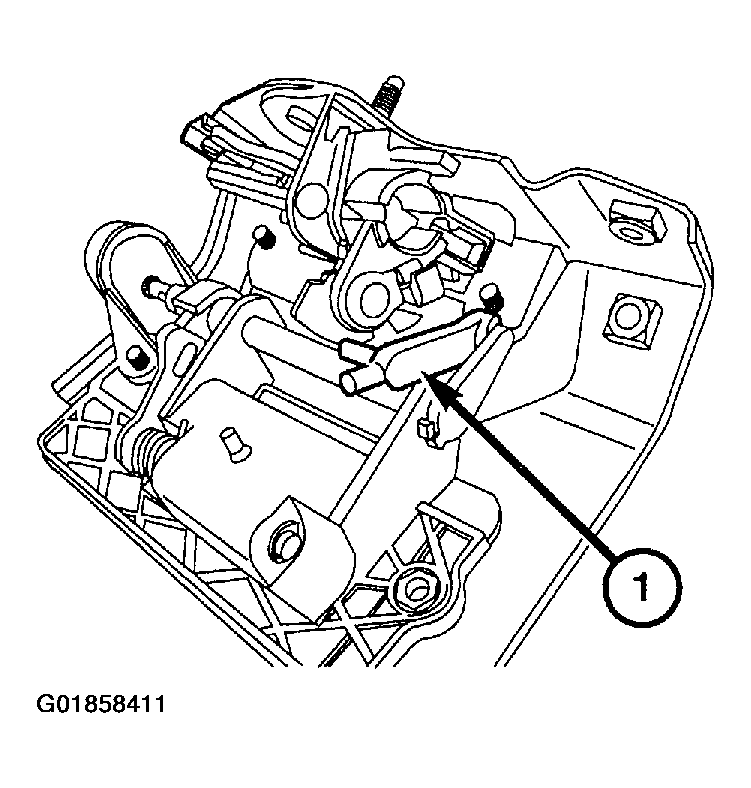

    Fig 2: Connecting Rear Liftgate Release Handle Linkage
    G01858411Courtesy of DAIMLERCHRYSLER CORP.
