Exterior/Interior Trim: Body: Hood: Hinge: Installation

  1. Install the hood hinge, then install the bolts (2). Tighten to 8 N.m (70 in. lbs.).

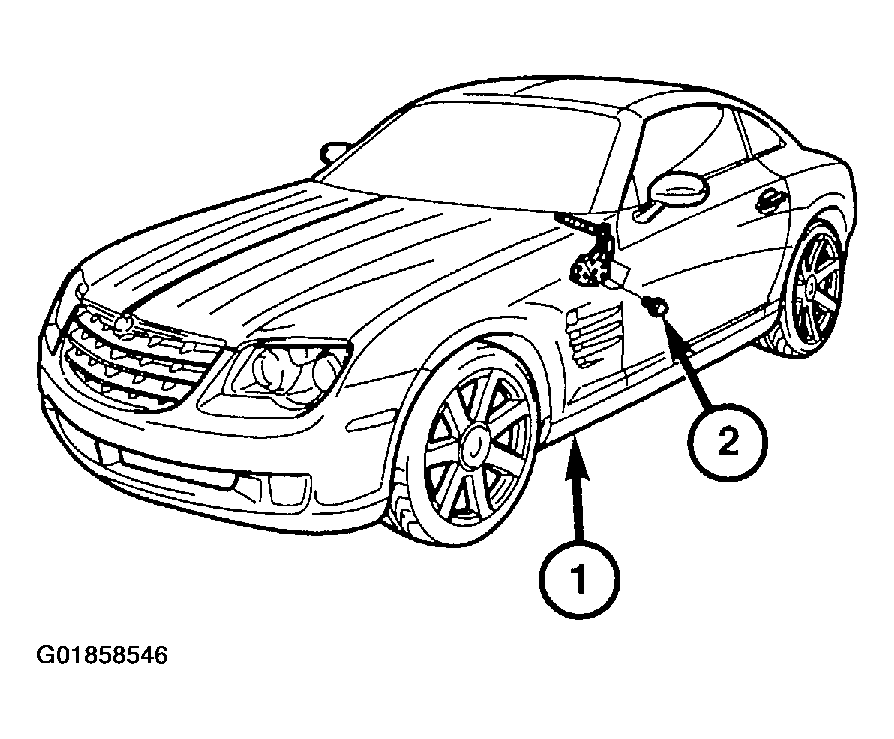

    Fig 1: Installing Inner Front Fender
    G01858546Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the inner front fender (1).
  3. Install the hood by installing the lower bolts (2), then installing the upper bolts (1). Tighten to 10 N.m (88 in. lbs.). See HOOD .

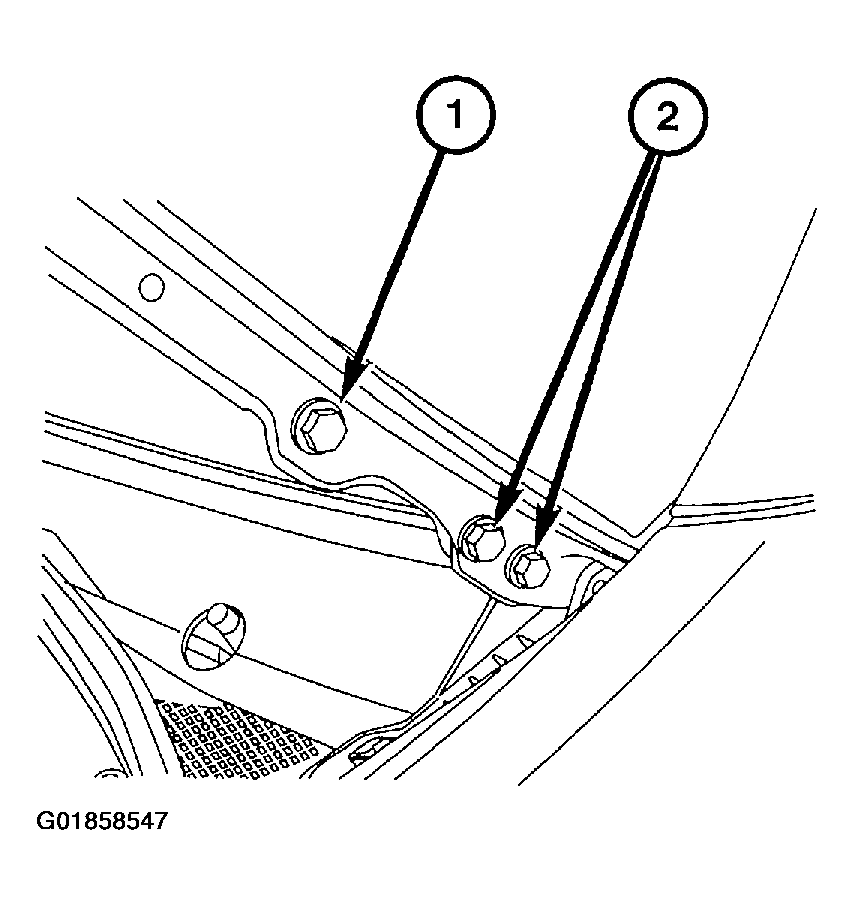

    Fig 2: Installing Hood
    G01858547Courtesy of DAIMLERCHRYSLER CORP.
