Vehicle Theft Security System: Siren: Installation

  1. Connect the siren electrical connector (1).

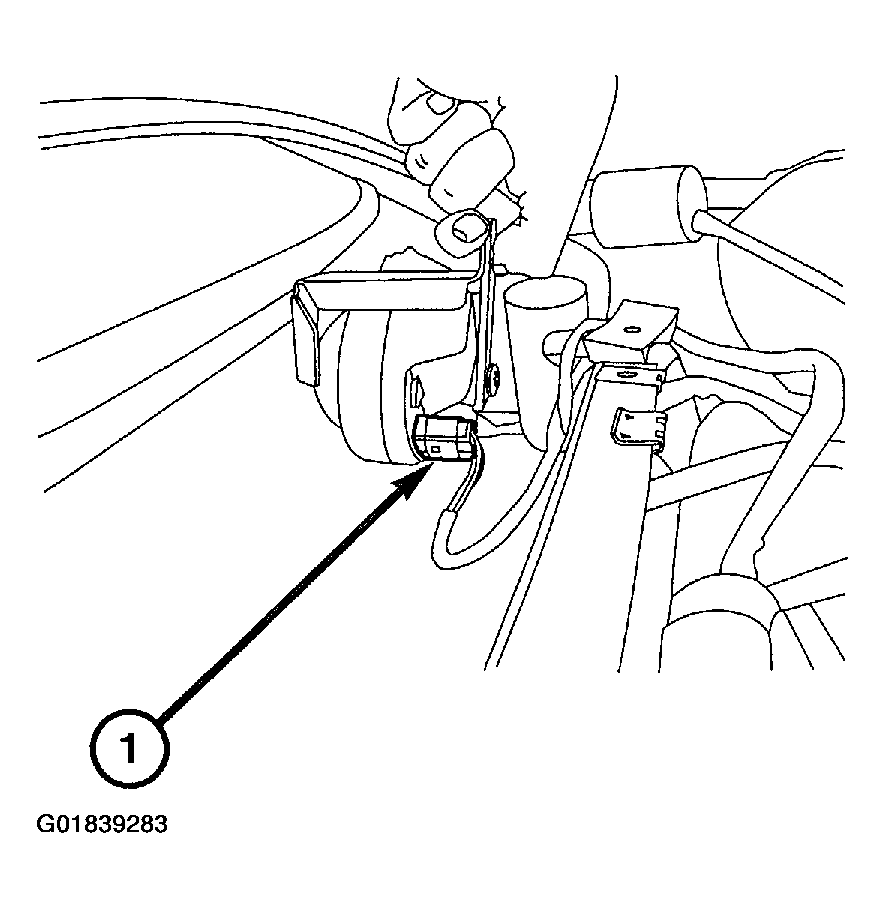

    Fig 1: Connecting Siren Electrical Connector
    G01839283Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the bolt (1) to the siren bracket.

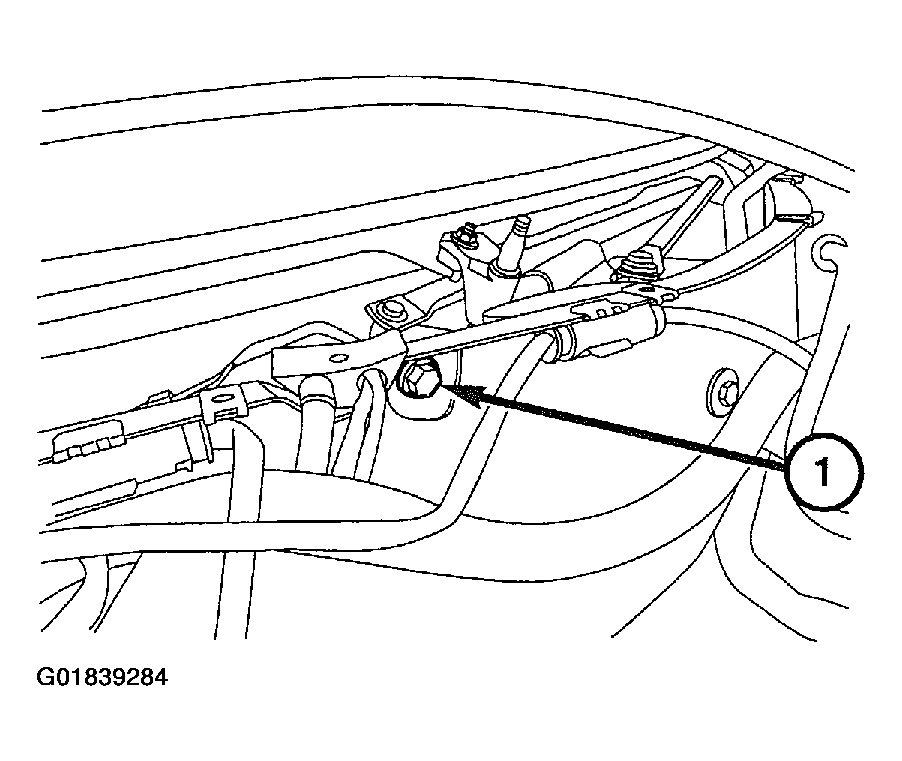

    Fig 2: Installing Bolt To Siren Bracket
    G01839284Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the cowl grille. See BODY article.
