Anti-Theft Tow Sensor: Installation

NOTE: Install the anti-theft tow sensor with the "UP" mark properly positioned.
  1. Connect the anti-theft tow sensor electrical connector (1).

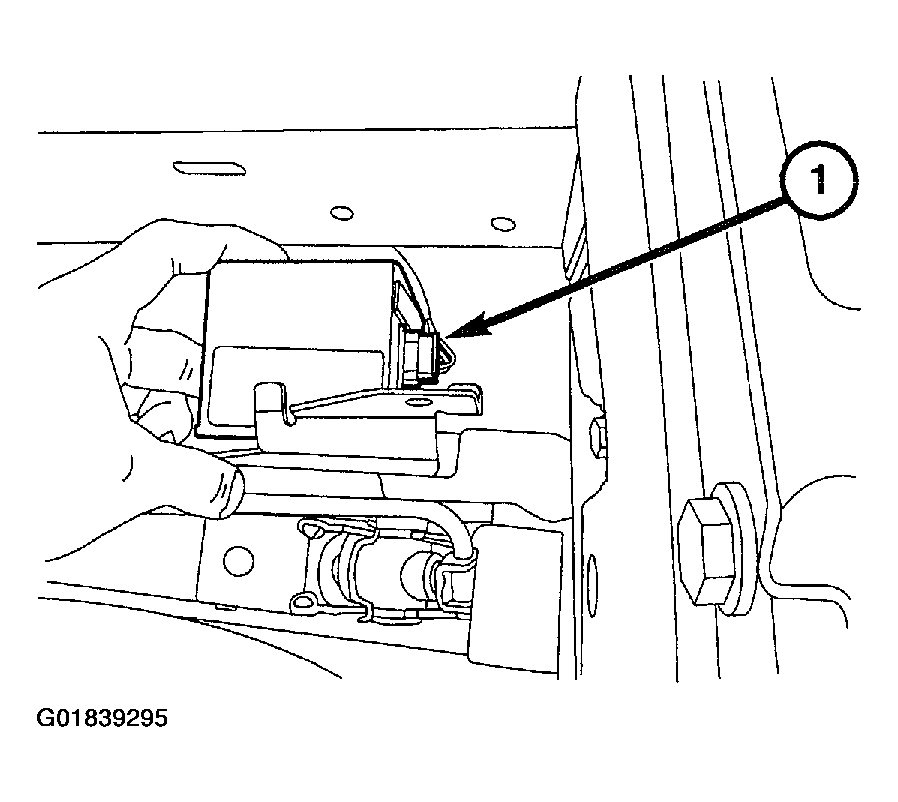

    Fig 1: Connecting Anti-Theft Tow Sensor Electrical Connector
    G01839295Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the bolt (1) to the anti-theft tow sensor bracket.

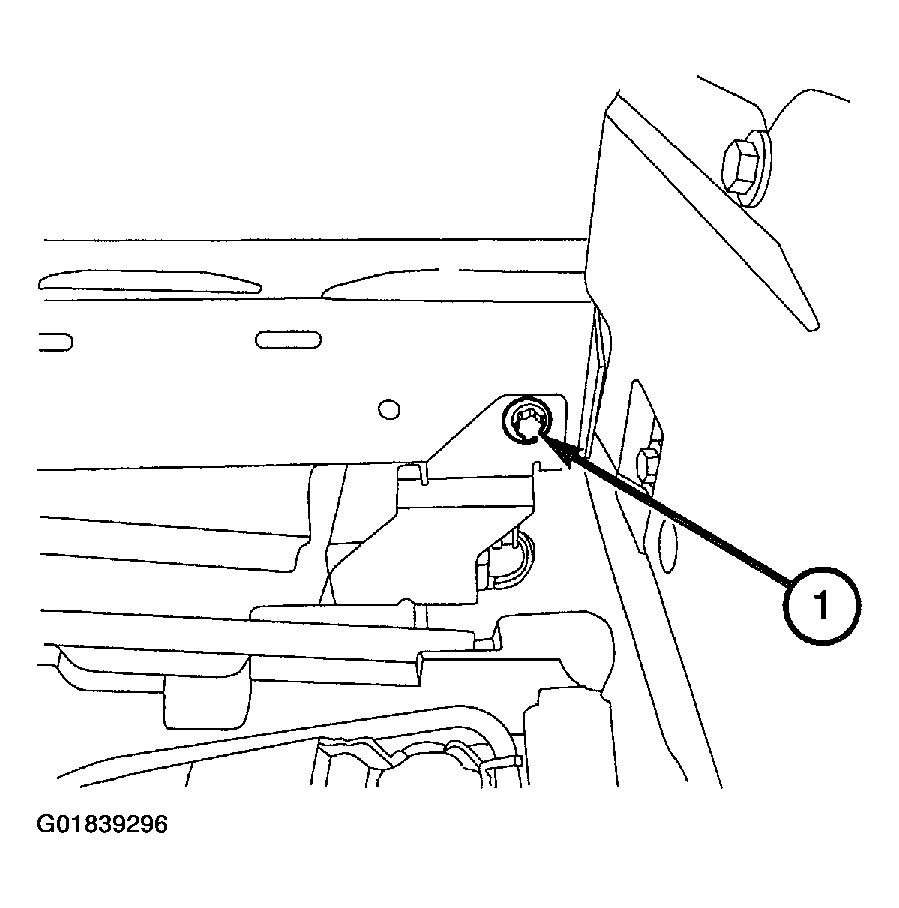

    Fig 2: Installing Bolt To Anti-Theft Tow Sensor Bracket
    G01839296Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the right side trunk inner trim panel.
