Power Locks - Service Information: Description: Notes

Power locks are standard equipment. Two ignition keys with integral Remote Keyless Entry (RKE) transmitters are supplied with the vehicle. They operate the ignition and the locks in the driver's door and glove box. The driver's door lock cylinder is the only external key cylinder on the vehicle. The power lock system enables the doors, liftgate and fuel door to be locked and unlocked in the following ways:

Each door can be locked or unlocked mechanically and independently with either its inside lock knob, inside remote release handle, or the outside key cylinder lock (driver door only). All power locks, including the rear liftgate and fuel door, can be remotely locked or unlocked with the Remote Keyless Entry (RKE) transmitter.

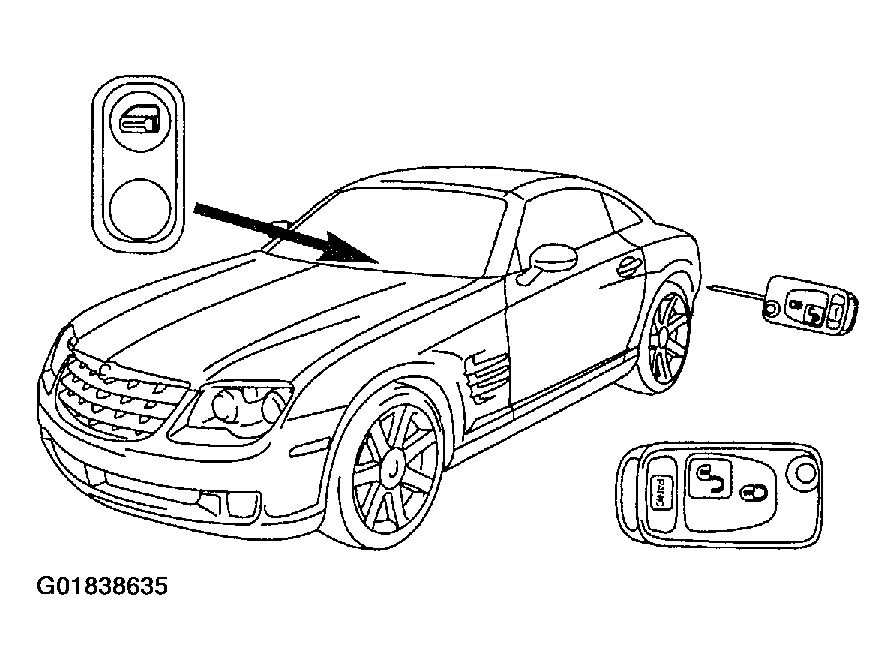

Fig 1: Identifying Power Door Lock System
G01838635Courtesy of DAIMLERCHRYSLER CORP.
