Driver Door Lock Switch: Removal

WARNING: SEE AIR BAG RESTRAINT SYSTEMS ARTICLE BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  1. Disconnect the negative battery cable.
  2. Remove the door interior trim panel. See BODY article.
  3. Gently peel back the door watershield enough to expose the driver door lock switch.
  4. Release the locking tab (1) attaching the driver door lock switch to the door latch assembly.

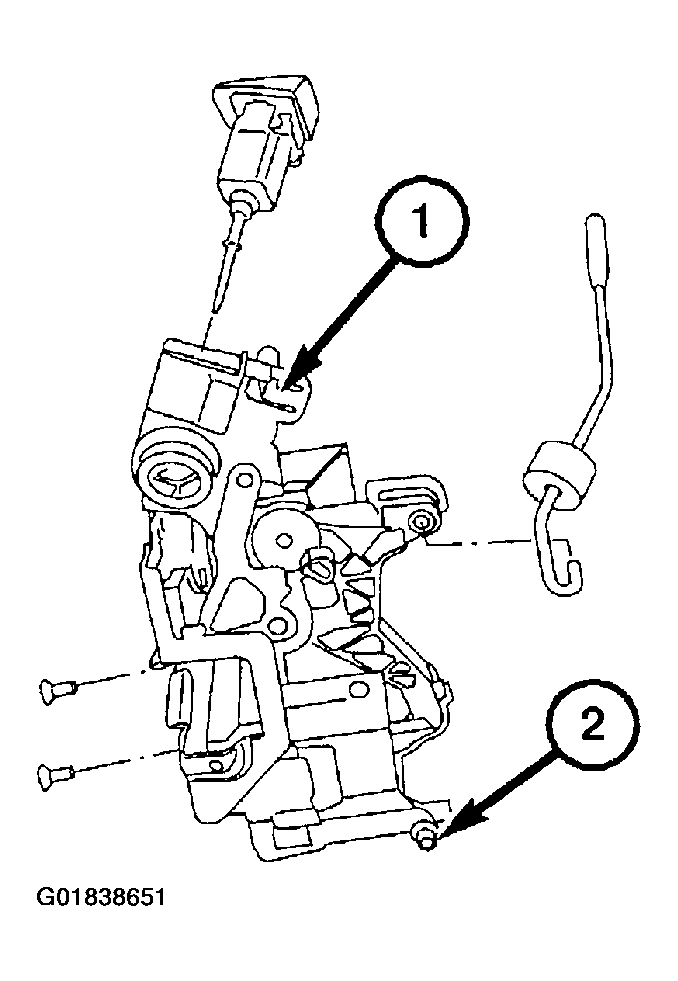

    Fig 1: Removing Driver Door Lock Switch
    G01838651Courtesy of DAIMLERCHRYSLER CORP.
  5. Disconnect the pneumatic supply line (2) from the door lock actuator.
  6. Disconnect the remaining door harness connectors, and remove the driver door lock switch.
