Door Latch Assembly: Installation

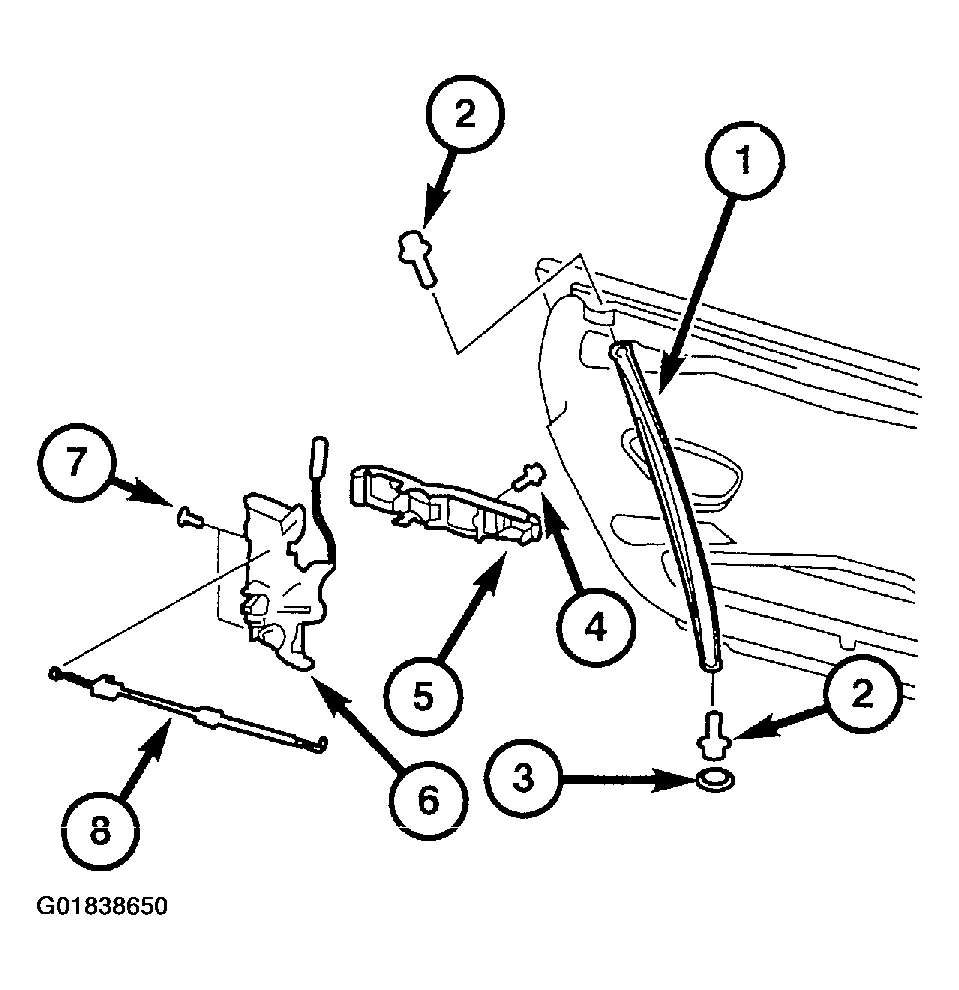

  1. Align the door latch assembly (6) into the door through the installation opening. Install the door latch assembly attachment screws (7) and torque to 8 N.m.
    Fig 1: Installing Door Latch Assembly
    G01838650Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the pneumatic supply line to the lock actuator on the door latch assembly.
  3. Install the inside handle release cable (8) and the driver door harness connector (driver door only).
    4. NOTE: The guide rail must be aligned with the installed position mark before securing proper glass adjustment.
  4. Align the guide rail into the door through the installation opening and install the attachment bolts (2). Install the lower cover plug (3).
    5. NOTE: Inspect the door watershield for damage and replace if necessary.
  5. Install the door watershield.
  6. Install the door lock cylinder. See BODY article.
  7. Install the door interior trim panel. See BODY article.
