Schematics And Diagrams

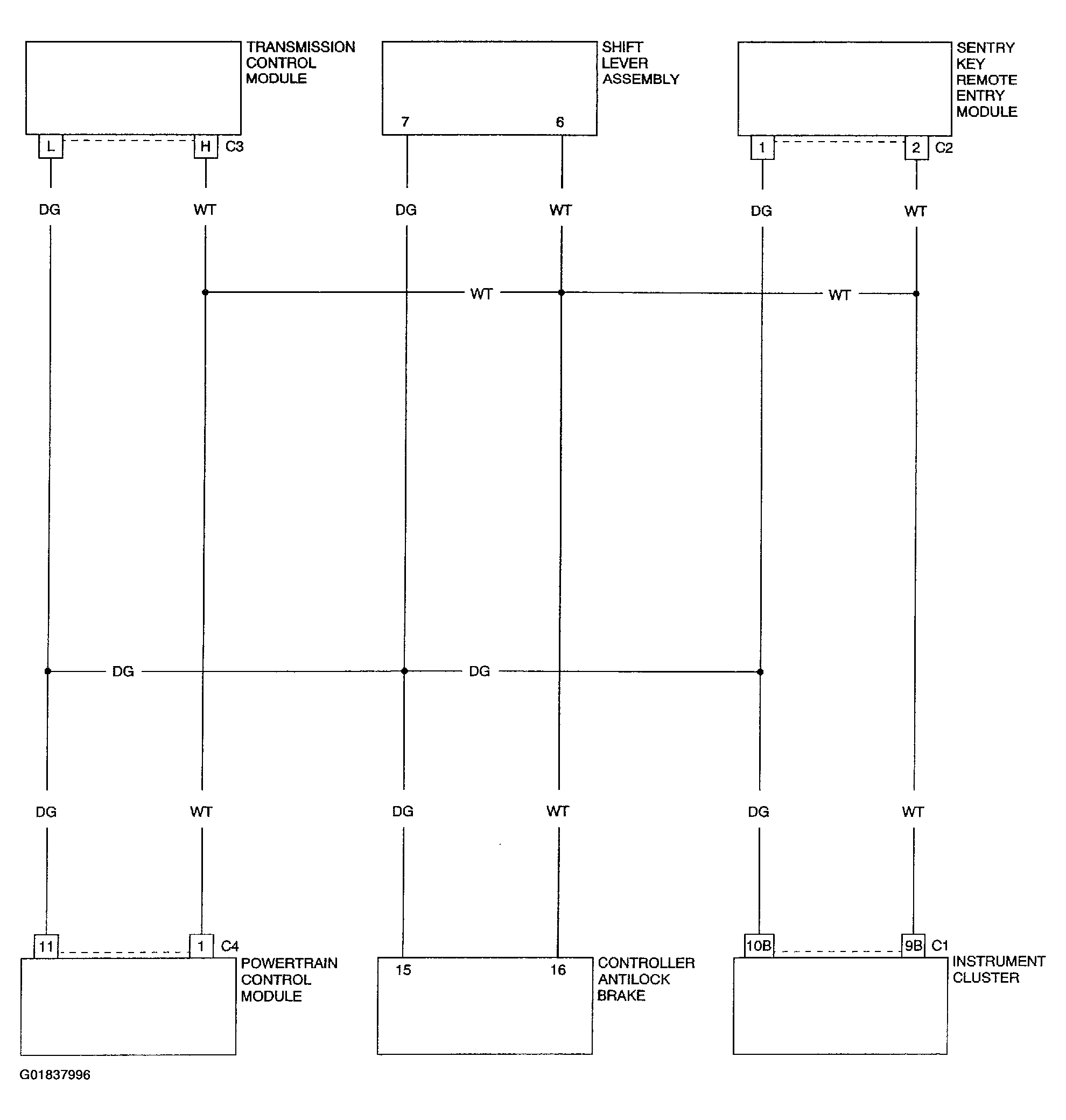

Fig 1: Identifying CAN B BUS - Automatic Transmission Circuit Diagram
G01837996Courtesy of DAIMLERCHRYSLER CORP.

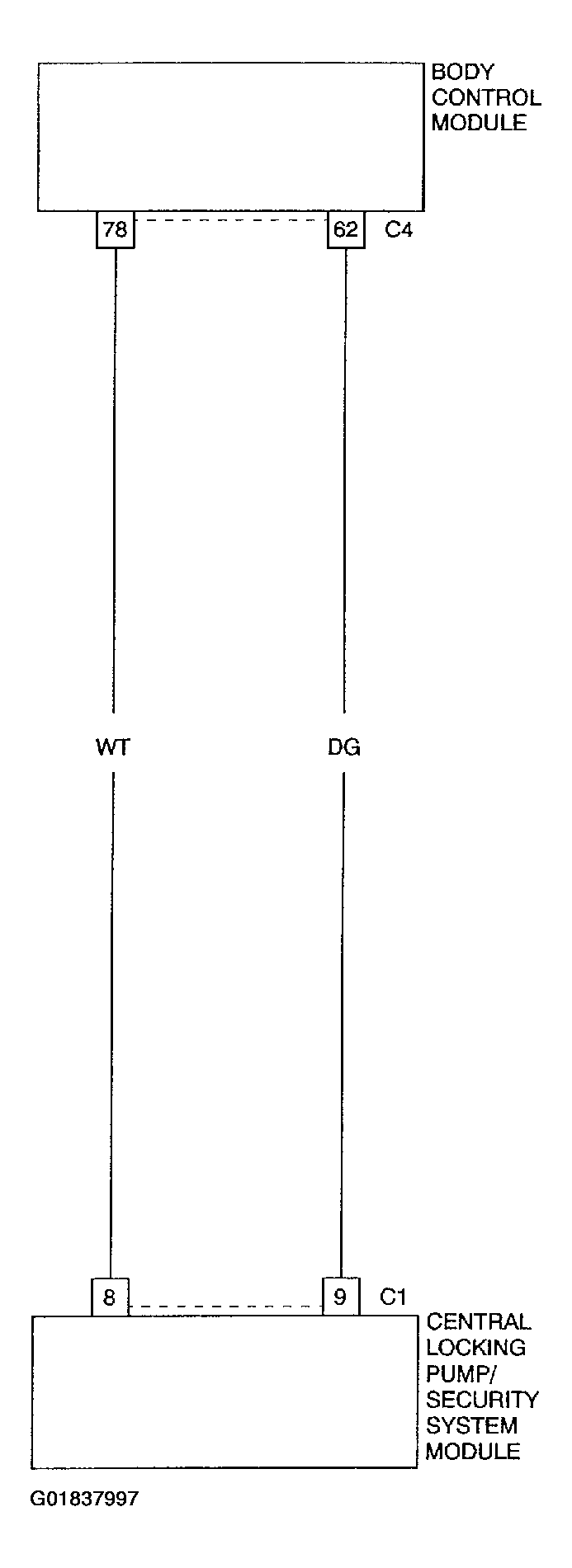

Fig 2: Identifying CAN C BUS Circuit Diagram
G01837997Courtesy of DAIMLERCHRYSLER CORP.

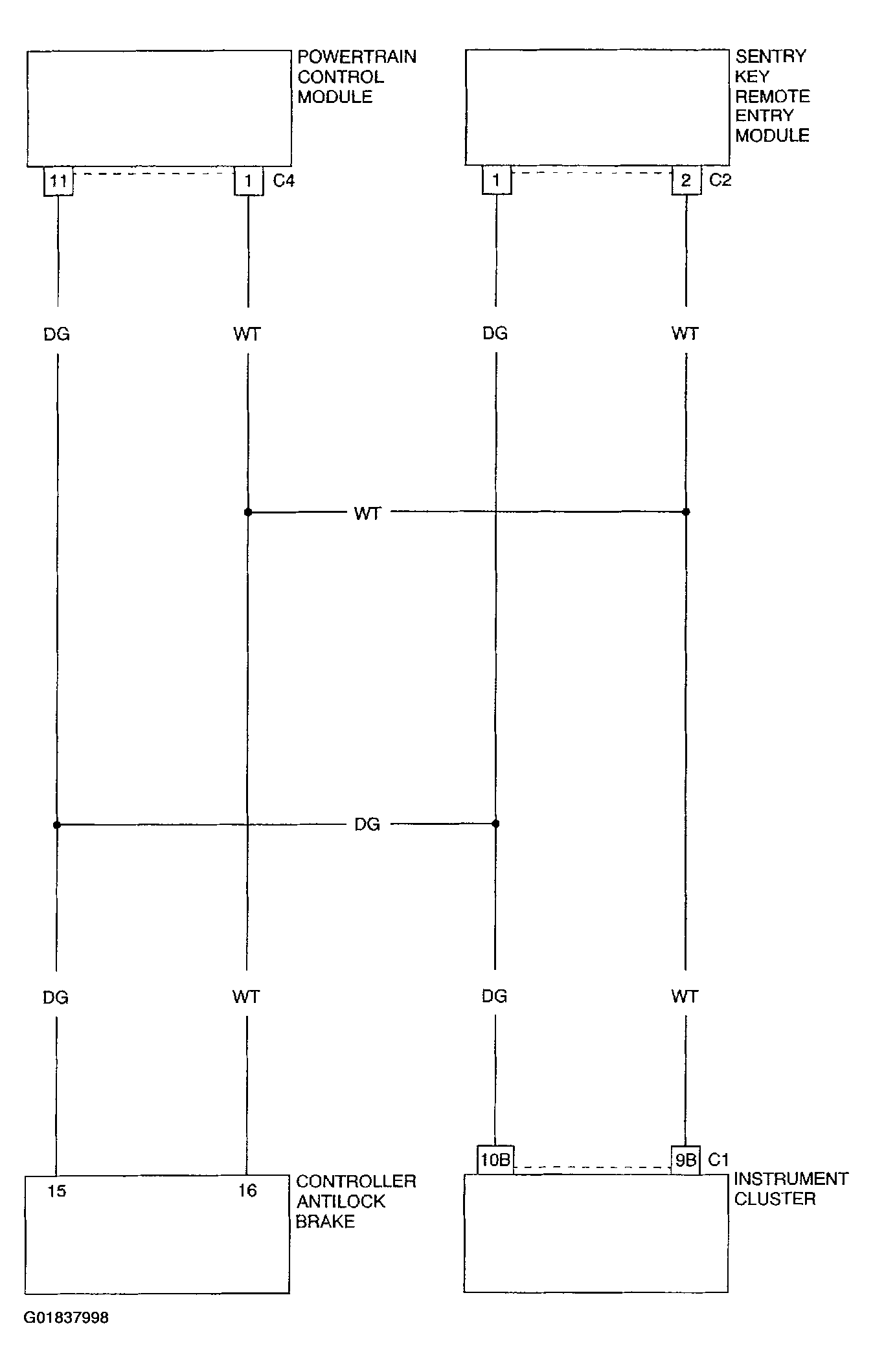

Fig 3: Identifying Manual Transmission Circuit Diagram
G01837998Courtesy of DAIMLERCHRYSLER CORP.

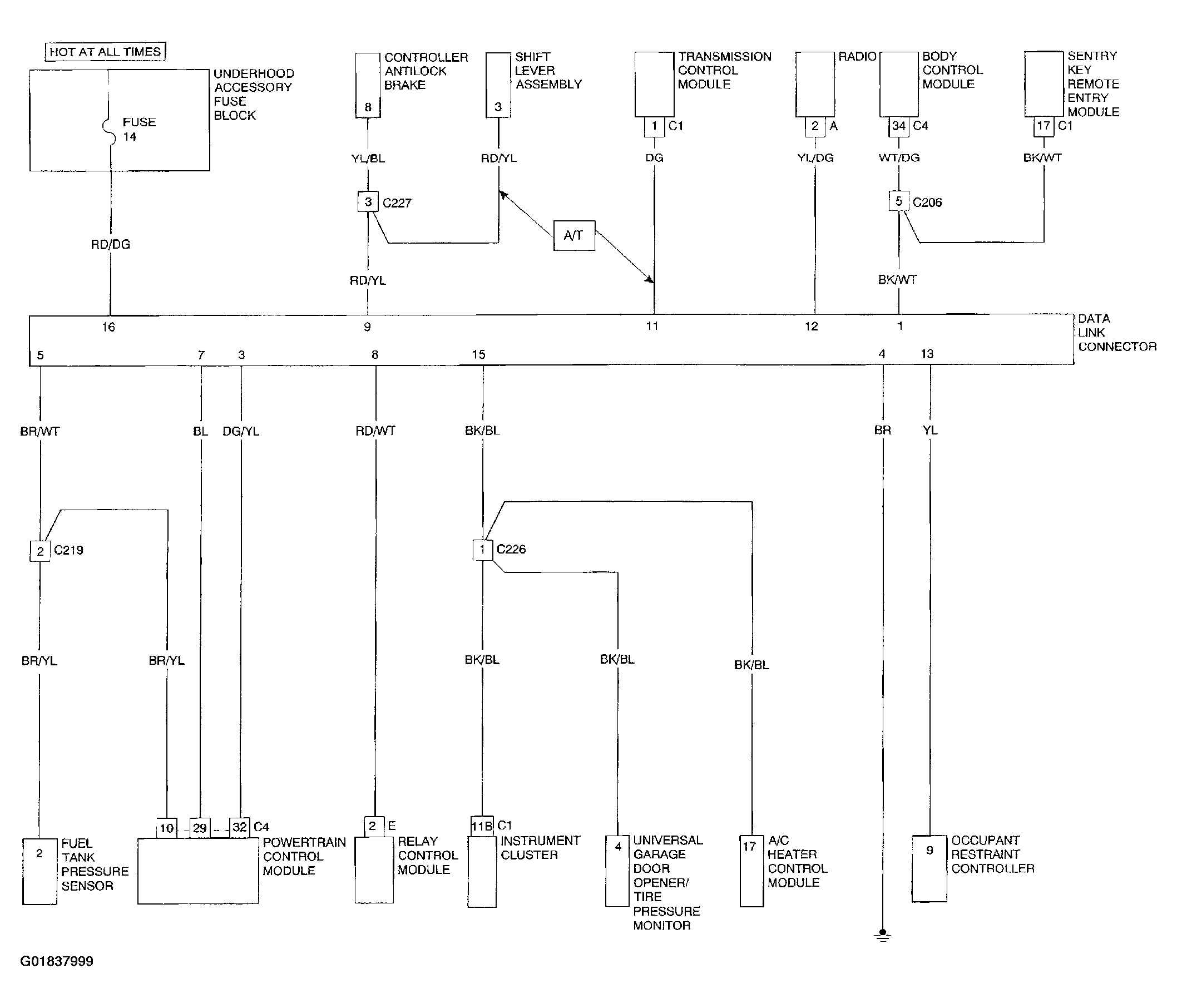

Fig 4: Identifying Data Link Connector Circuit Diagram
G01837999Courtesy of DAIMLERCHRYSLER CORP.

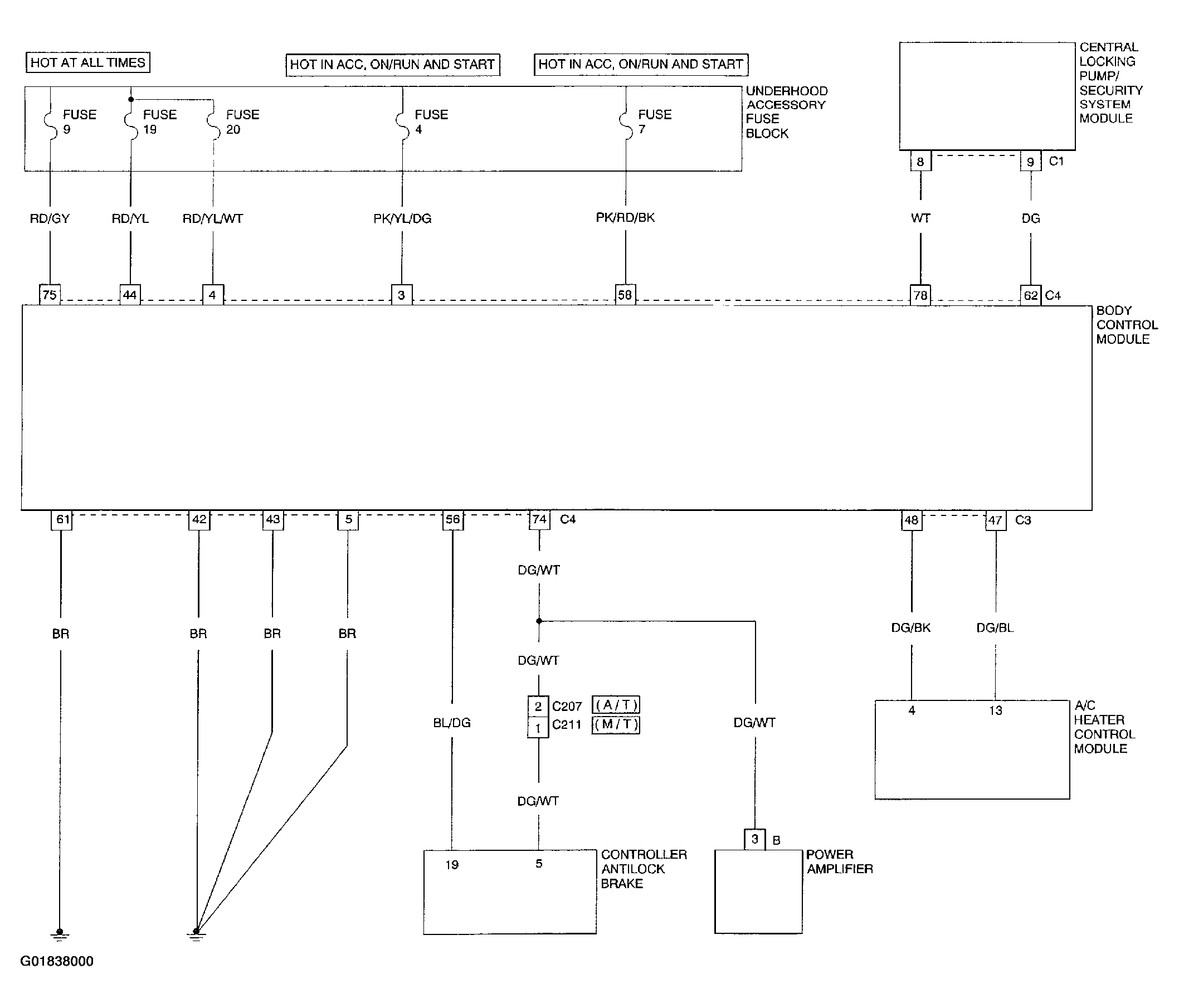

Fig 5: Identifying Body Control Module Circuit Diagram (1 Of 3)
G01838000Courtesy of DAIMLERCHRYSLER CORP.

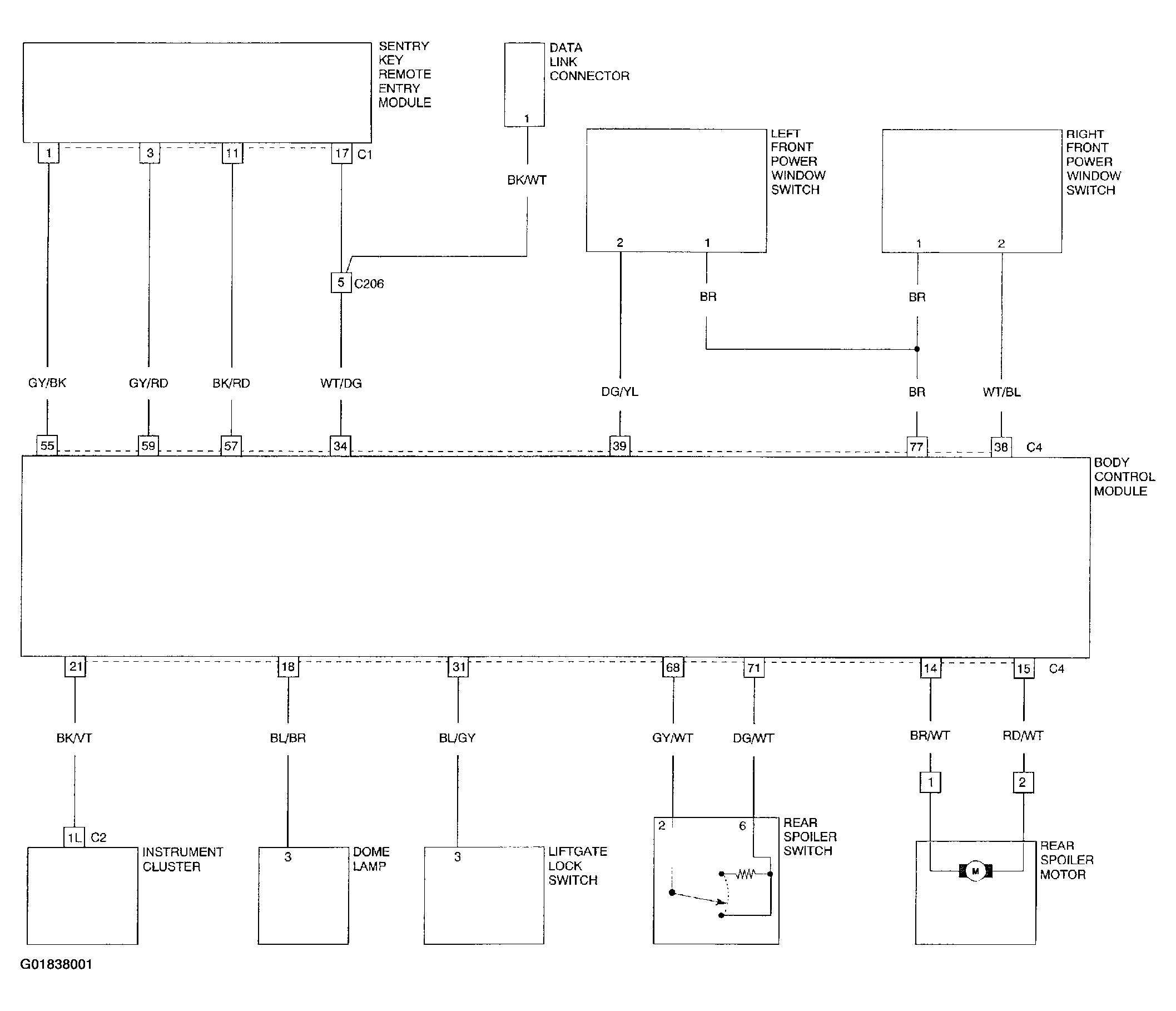

Fig 6: Identifying Body Control Module Circuit Diagram (2 Of 3)
G01838001Courtesy of DAIMLERCHRYSLER CORP.

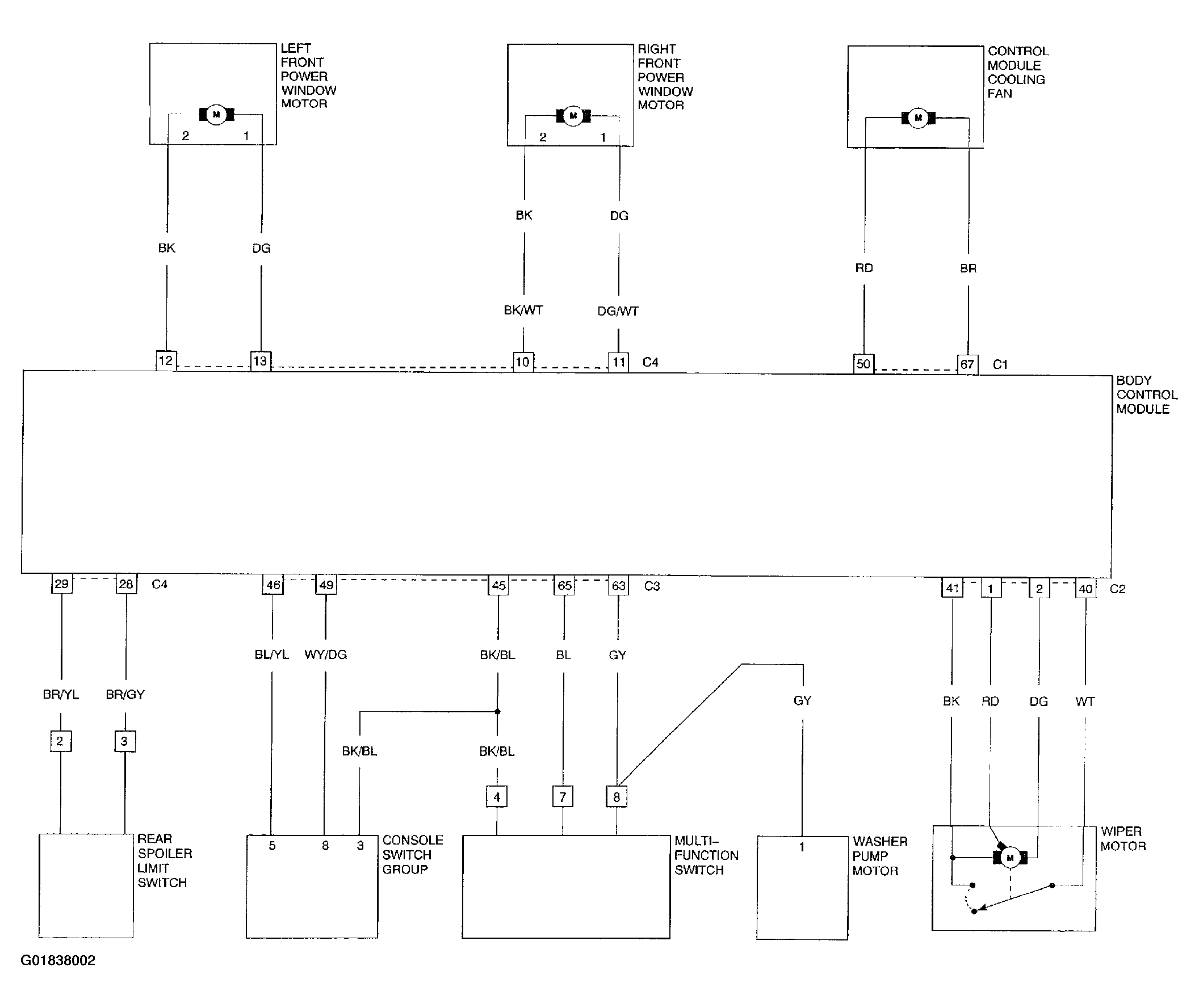

Fig 7: Identifying Body Control Module Circuit Diagram (3 Of 3)
G01838002Courtesy of DAIMLERCHRYSLER CORP.
