Circuit Diagram & Connector Identification

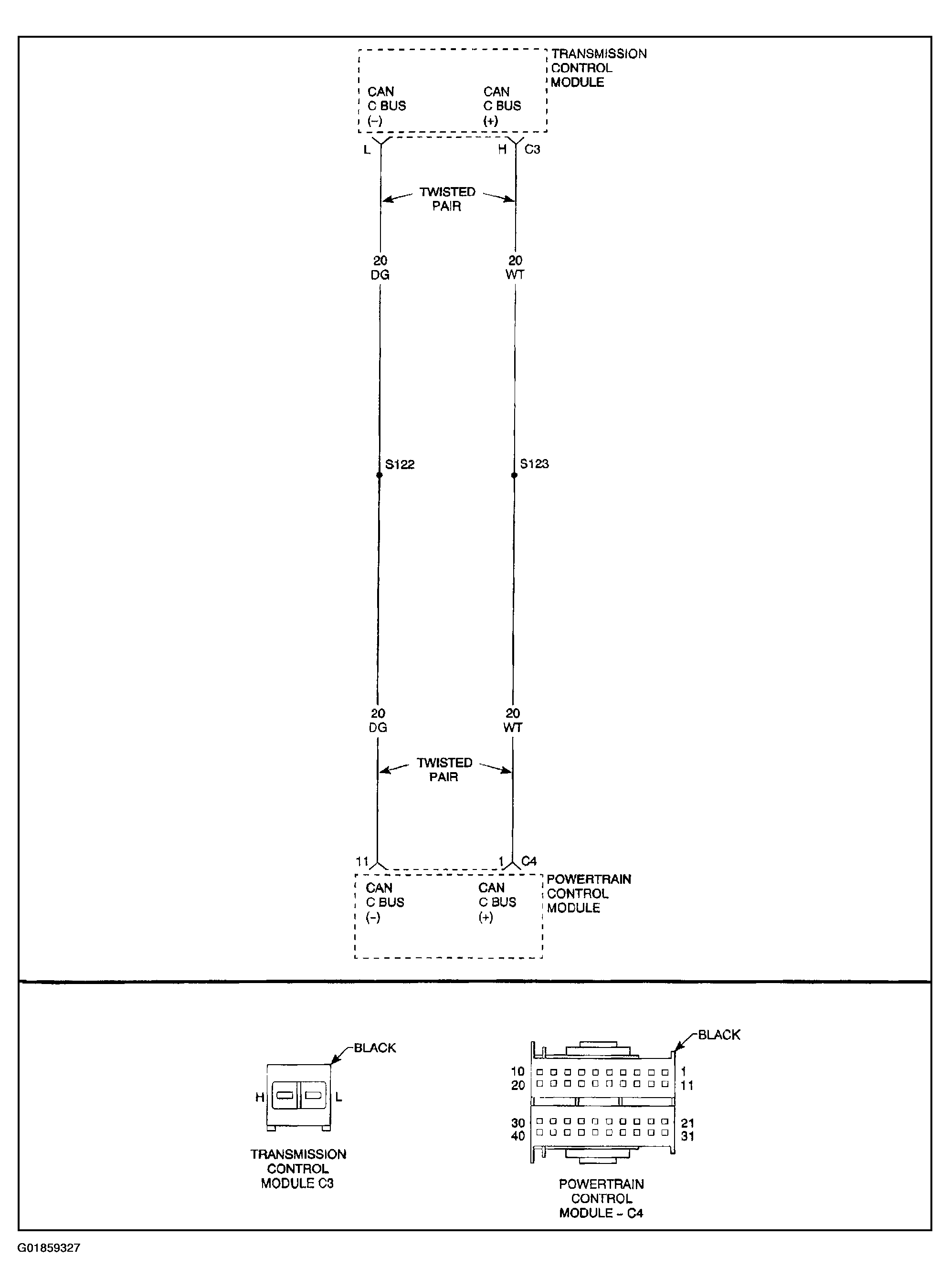

Fig 1: Identifying DTC P0702: Invalid Control Module Version Circuit Diagram & Connector Identification

G01859327

Courtesy of DAIMLERCHRYSLER CORP.
