Left Front Lamp Assembly Connector End View

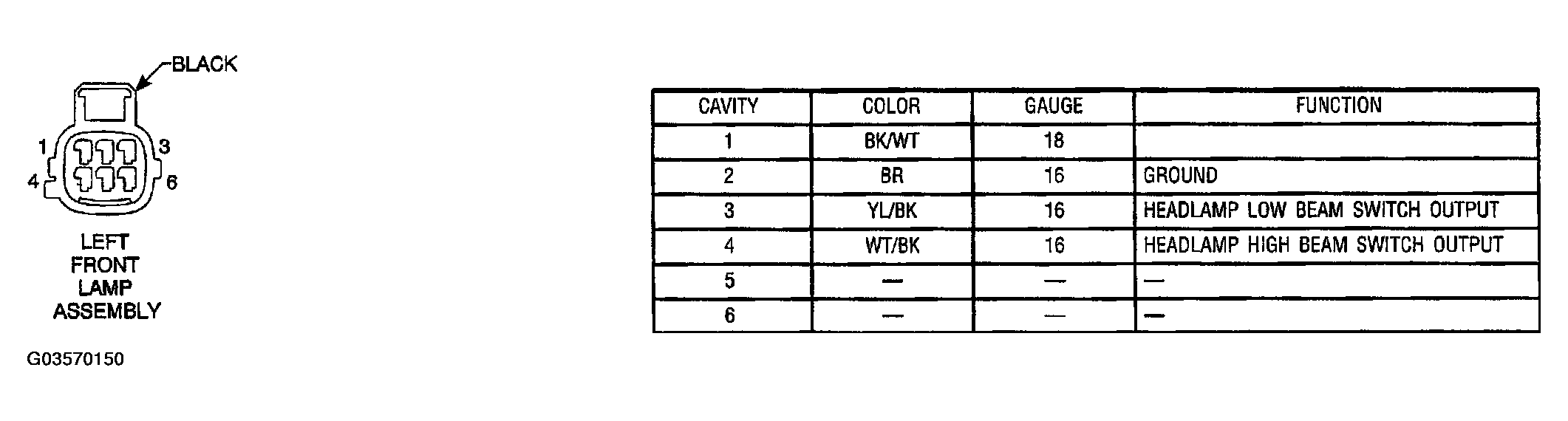

Fig 1: Left Front Lamp Assembly Connector End View

G03570150

Courtesy of DAIMLERCHRYSLER CORP.
