Illumination Control Module Connector End View (E)

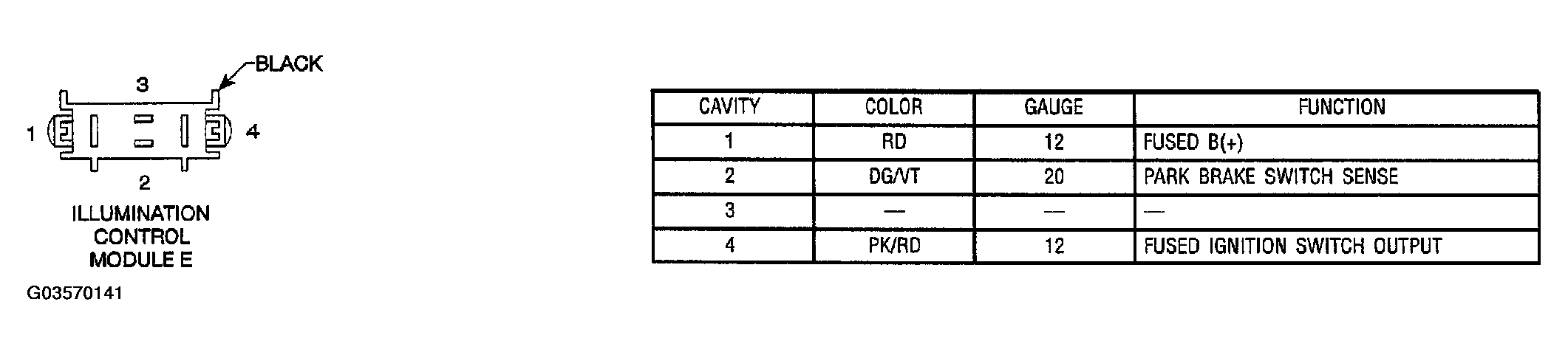

Fig 1: Illumination Control Module Connector End View (E)

G03570141

Courtesy of DAIMLERCHRYSLER CORP.
