Body Control Module Connector End View (C4)

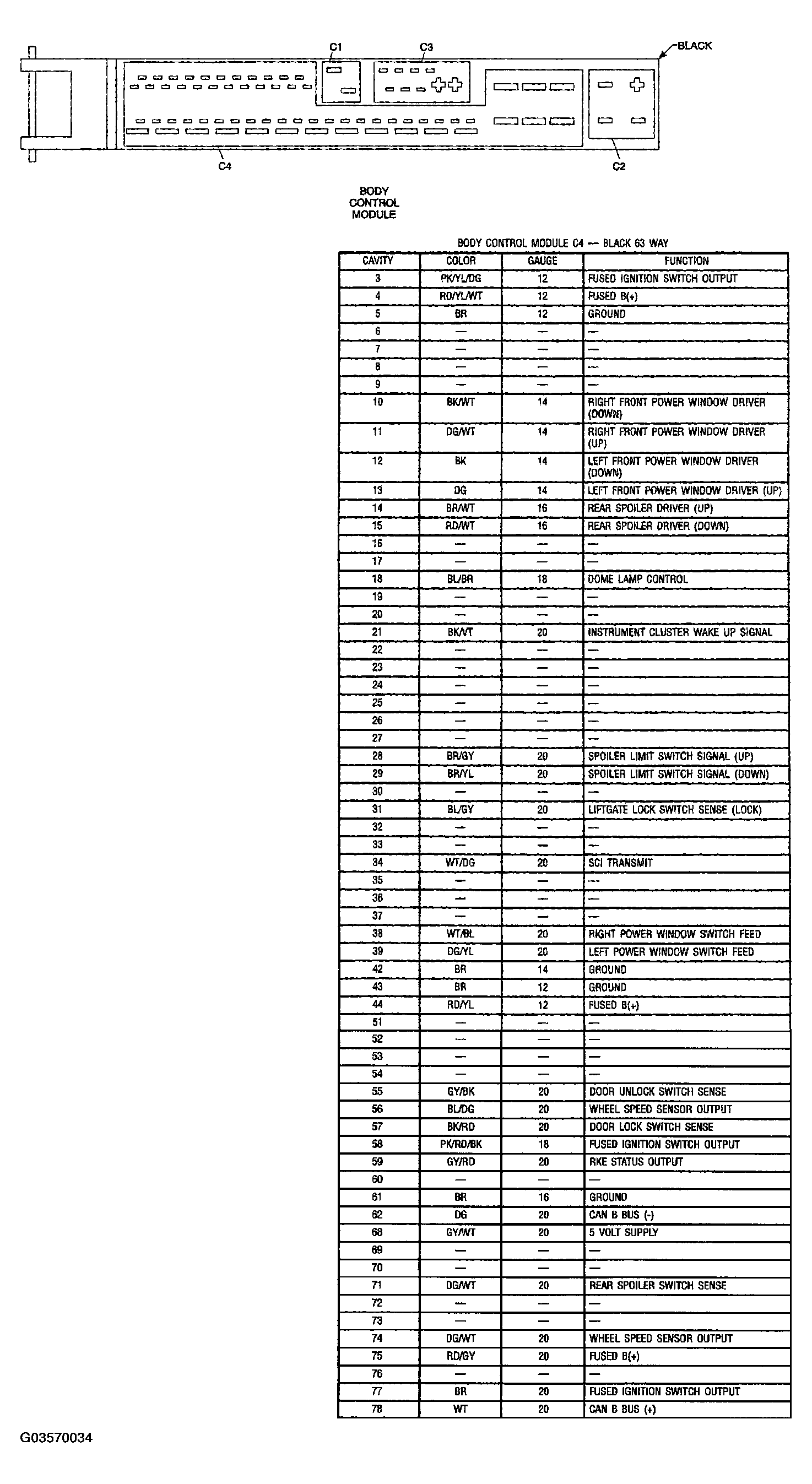

Fig 1: Body Control Module Connector End View (C4)

G03570034

Courtesy of DAIMLERCHRYSLER CORP.
