Speed Control Switch Connector End View

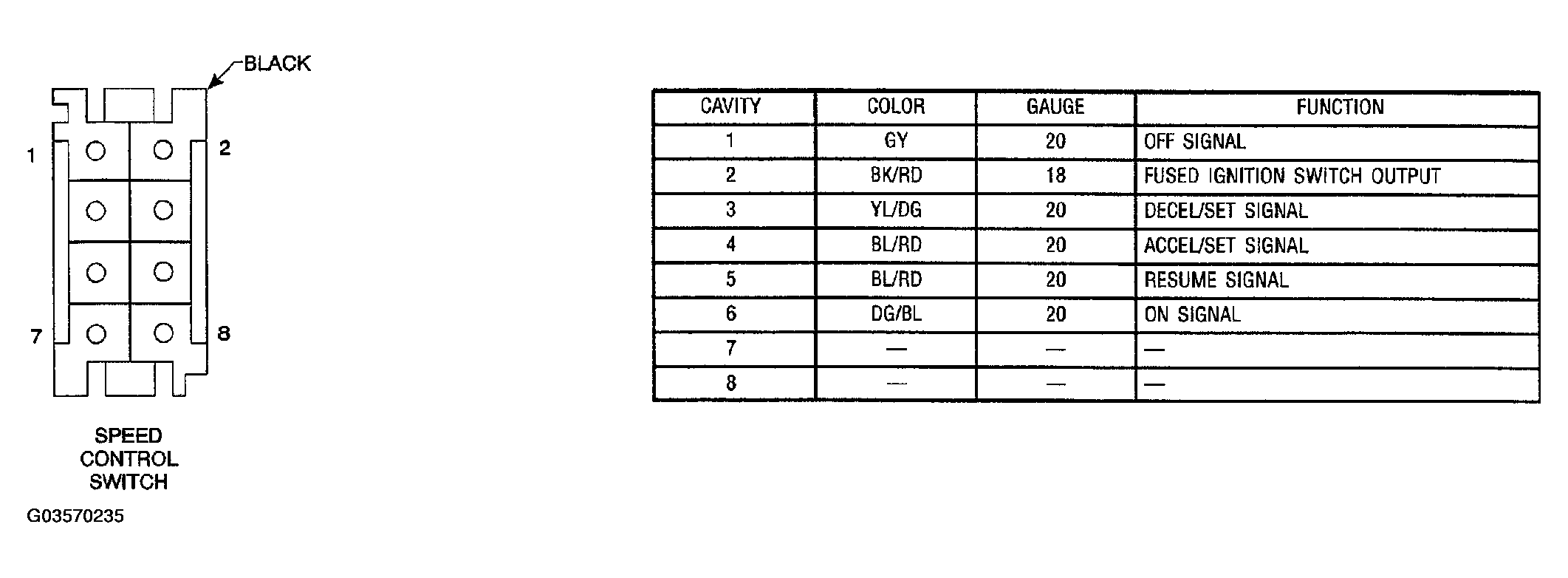

Fig 1: Speed Control Switch Connector End View

G03570235

Courtesy of DAIMLERCHRYSLER CORP.
