Illumination Control Module Connector End View (D)

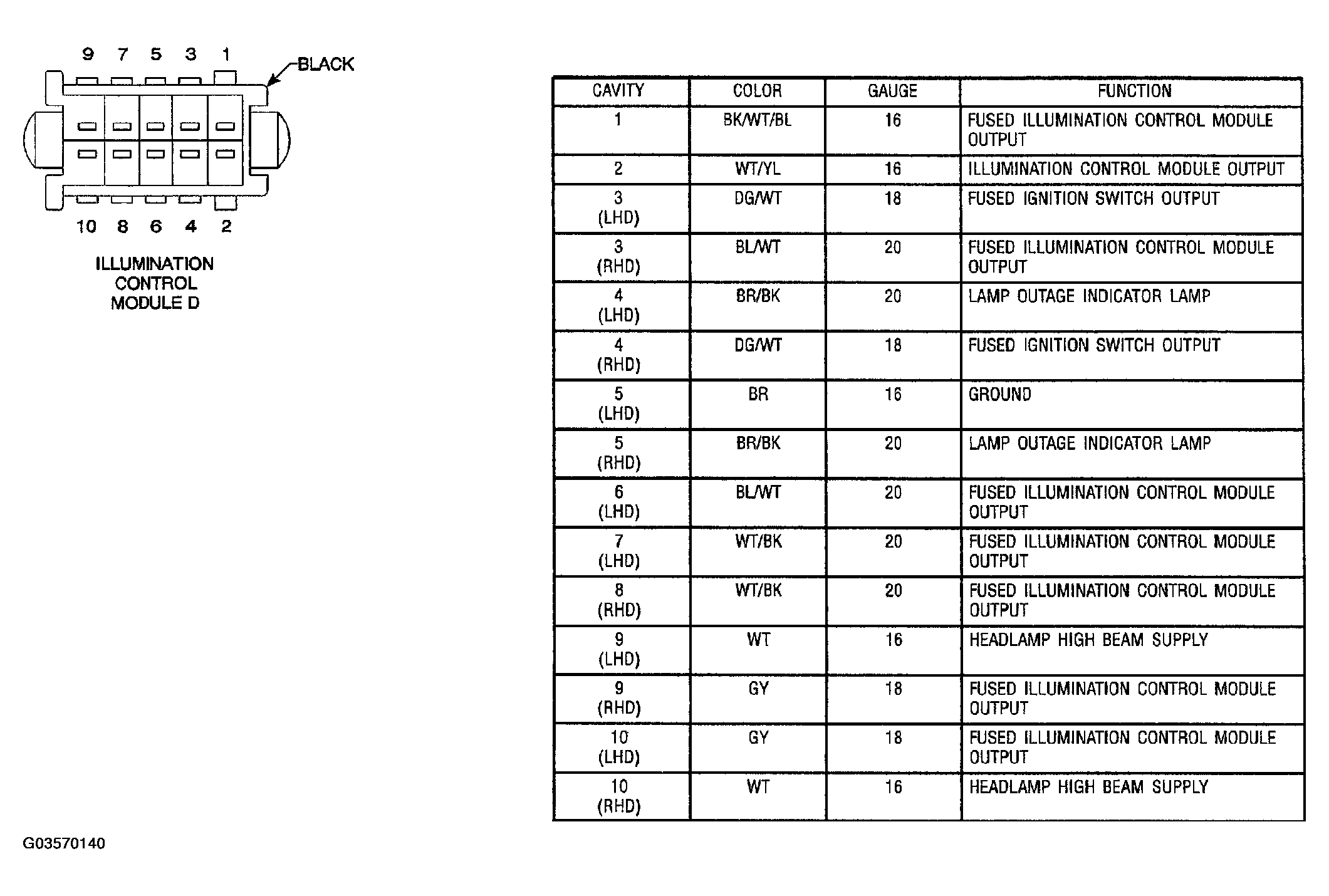

Fig 1: Illumination Control Module Connector End View (D)

G03570140

Courtesy of DAIMLERCHRYSLER CORP.
