Multifunction Switch Connector End View

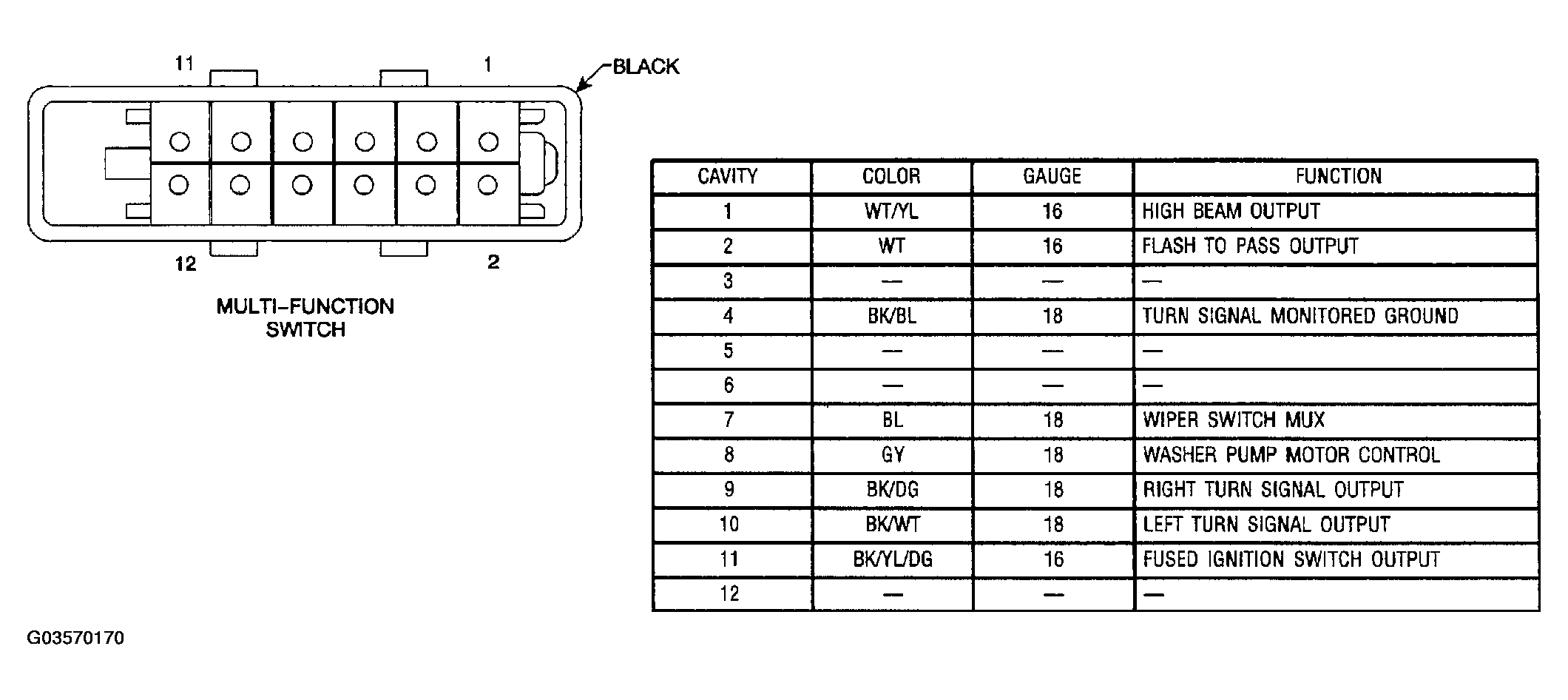

Fig 1: Multifunction Switch Connector End View

G03570170

Courtesy of DAIMLERCHRYSLER CORP.
