Driver Door Lock Motor/Ajar Switch Connector End View

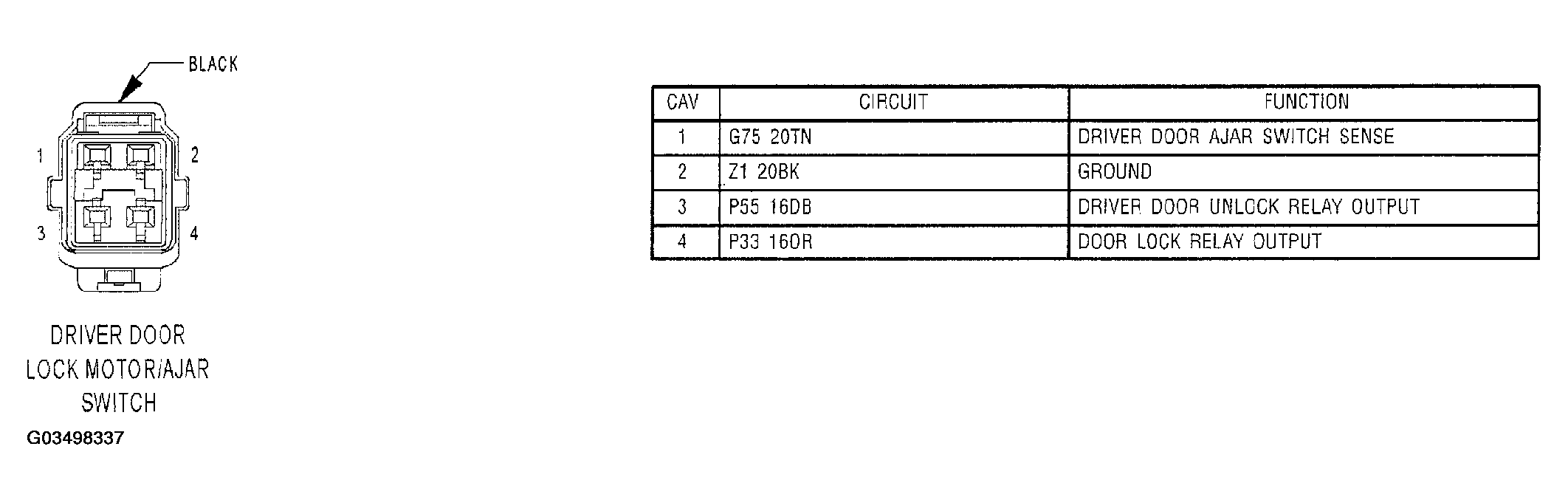

Fig 1: Driver Door Lock Motor/Ajar Switch Connector End View

G03498337

Courtesy of DAIMLERCHRYSLER CORP.
